VP high pressure vacuum homogenizer cream mixer emulsifier cosmetics
HP300
Barrel Volume:300L
Max. Loading Volume:340 L
Mixer Type: Paddle
Material Processed: Chemicals, Food
Weight: 250 KG
Place of Origin: Guangdong, China
Power: 0.55 kW
Warranty: 1 Year
Key Selling Points: High Safety Level
Applicable Industries: Manufacturing Plant, Printing Shops, Other
Showroom Location: Viet Nam, Russia, UAE
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Range of Spindle Speed: 0 - 60 r.p.m
Max. Loading Capacity: 5000L or customized
Material: SUS304L, SUS316L
Product Type: Cosmetic,soap,shampoo,cream,lotion,etc.
Application: Liquid
Brand Name: VP
Voltage: 380V/50Hz
Dimension: 3000*2900*2430mm
Function: Mixing Raw Material
Upper one-way: stirring Wall Scraper Mixer

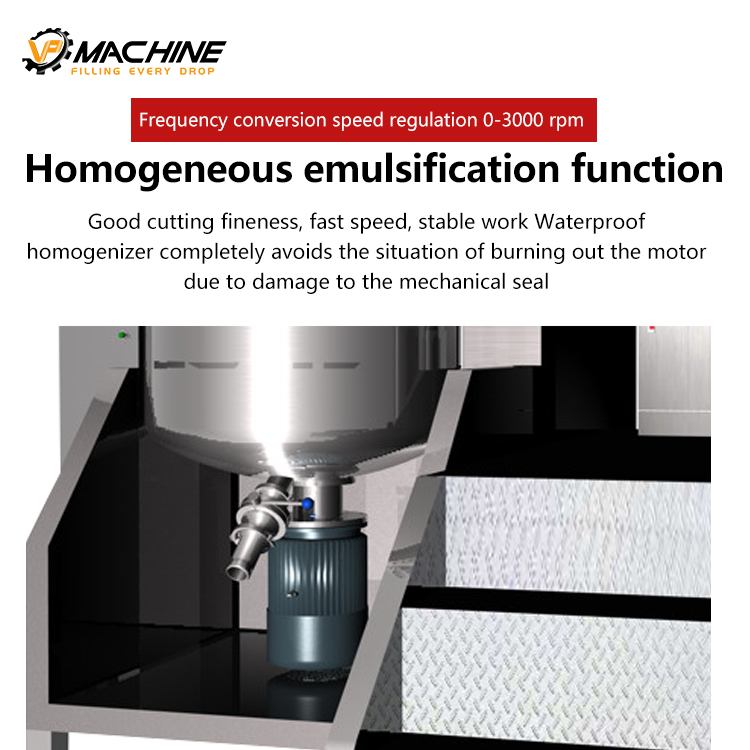

Bottoms: High speed shear homogenization
Motor: SIMENS
Capacity: 20-5000L
Homogenization speed: 1400rpm/min
Heating way: Electric or steam heating
Certificate: CE ISO
Max. Loading Volume:340 L
Mixer Type: Paddle
Material Processed: Chemicals, Food
Weight: 250 KG
Place of Origin: Guangdong, China
Power: 0.55 kW
Warranty: 1 Year
Key Selling Points: High Safety Level
Applicable Industries: Manufacturing Plant, Printing Shops, Other
Showroom Location: Viet Nam, Russia, UAE
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Range of Spindle Speed: 0 - 60 r.p.m
Max. Loading Capacity: 5000L or customized
Material: SUS304L, SUS316L
Product Type: Cosmetic,soap,shampoo,cream,lotion,etc.
Application: Liquid
Brand Name: VP
Voltage: 380V/50Hz
Dimension: 3000*2900*2430mm
Function: Mixing Raw Material
Upper one-way: stirring Wall Scraper Mixer
Bottoms: High speed shear homogenization
Motor: SIMENS
Capacity: 20-5000L
Homogenization speed: 1400rpm/min
Heating way: Electric or steam heating
Certificate: CE ISO
minimum order
1 set
Supply Ability
1000set / Month
Country of Origin
China
Stock Time
25Day
Quantity:

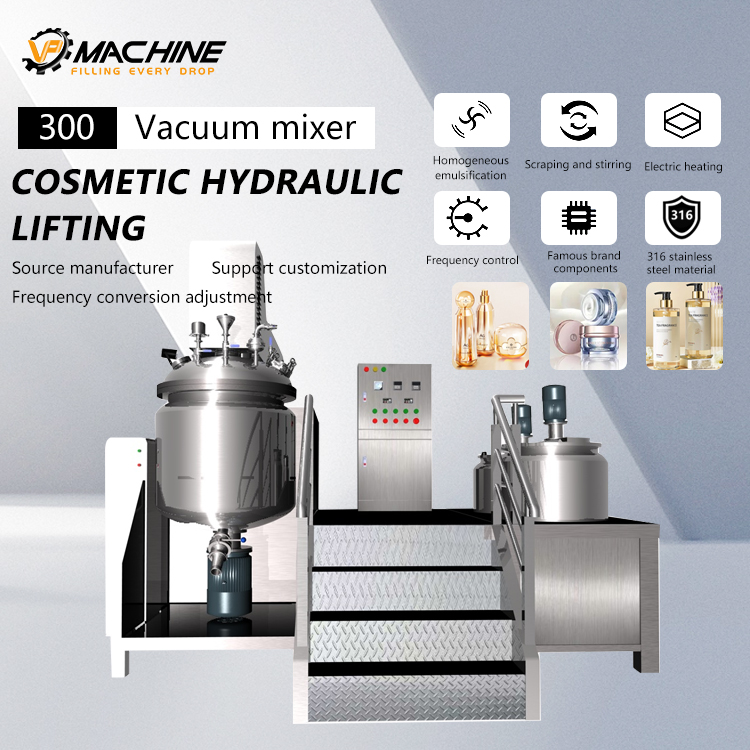

Vacuum Homogenizing Mixer

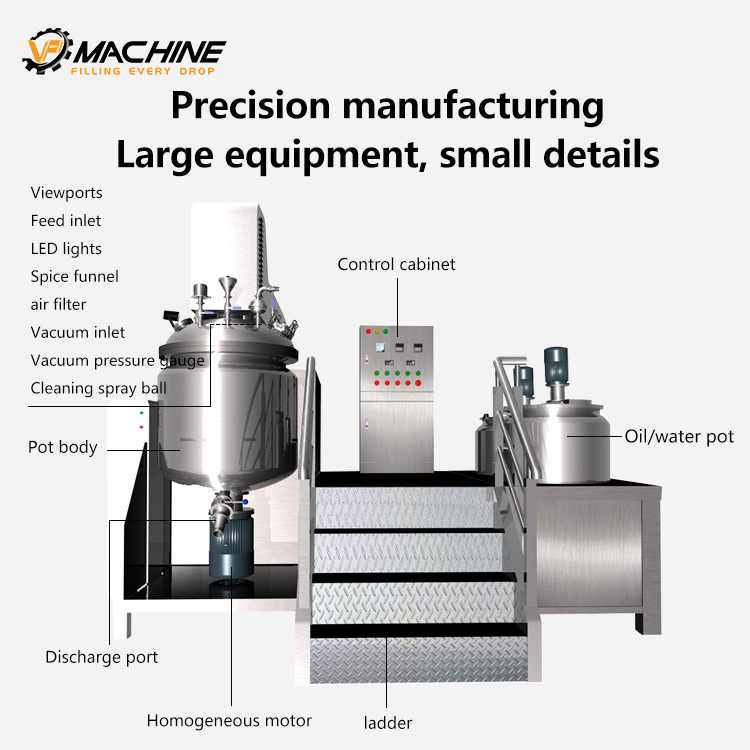

Vacuum emulsifying mixer machine consist of Main emulsifying tank, Vacuum system, Fixed type vacuum system (OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics/chemical/food products.Application:
Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo
Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine.
Chemical Industry: Polyester, Synthetic fiber Paint
Chemical Industry: Polyester, Synthetic fiber Paint
Industry: Paints, Synthetic resin paint
Others: Color, Wax, Shoe cream, Coating liquid
| Model | Working Volume | Mixing Power | Mixing Speed | Homogenizing Power | Homogenizing Speed | Heating |
|---|---|---|---|---|---|---|
| VM50 | 50L | 0.75 KW | 0-60 rmp | 1.5 kw | 0-3000rpm | Electric heating |
| VM100 | 100L | 1.5 kw | 0-60 rmp | 3 kw | 0-3000rpm | Electric heating |
| VM200 | 200L | 2.2 kw | 0-60 rmp | 4 kw | At room temperature -0.05Mpa | Electric heating |
| VM300 | 300L | 3 KW | 0-60 rmp | 7.5 kw | 0-3000rpm | Electric or steam heating |
| VM500 | 500L | 4 KW | 0-60 rmp | 2.2 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM1000 | 1000L | 5.5 KW | 0-60 rmp | 4 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM2000 | 2000L | 7.5 KW | 0-50 rpm | 5.5 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM3000 | 3000L | 11 KW | 0-50 rpm | 5.5 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM... | Customized | |||||
