Cosmetic Homogenizer Emulsifier Mixer

HP100L

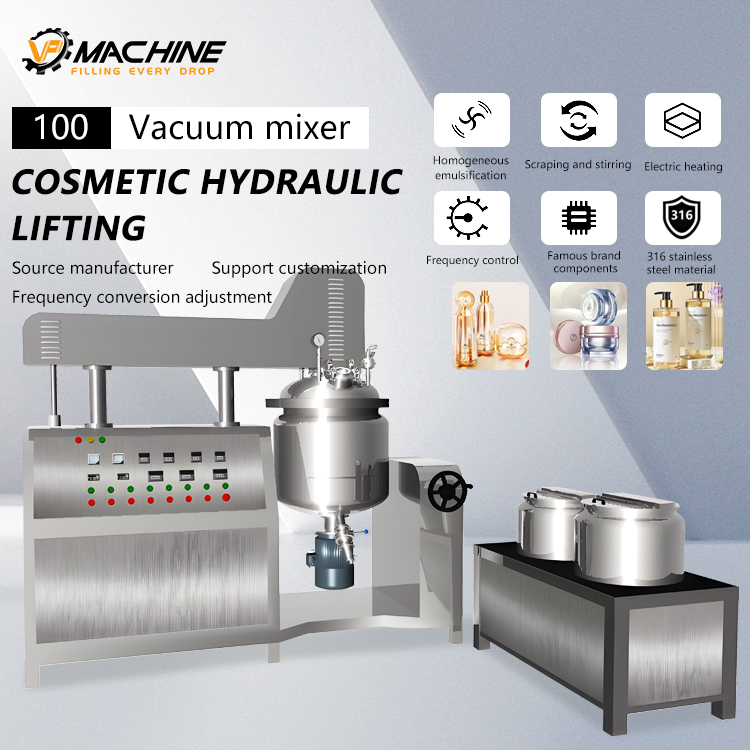

HP100L vacuum emulsifying machine adopt advanced overseas technology. It is specially designed for cosmetic cream and pharmaceutical cream products. The whole system is consist of water pot, oil pot, main pot, vacuum pump, hydraulic system, tilting discharge system, electric controlling system, platform etc.
Quantity:
Contact Now
add to cart
Buy Now

Description:
HP100L vacuum emulsifying machine adopt advanced overseas technology. It is specially designed for cosmetic cream and pharmaceutical cream products. The whole system is consist of water pot, oil pot, main pot, vacuum pump, hydraulic system, tilting discharge system, electric controlling system, platform etc.

Performance & Feature:
The whole processing is controlled by PLC system. It can work for other setting such as load cell system, remote monitoring system. All the components are import brand such as the inverter, mechanical seal for the homogenizer. CPU, PLC, touch screen, controlling buttons and stainless steel. It makes the cream high quality and more fines sufficiently meet customers’ requirements for making good quality cream products and it is also popular among the OEM companies.
ModelWorking VolumeMixing PowerMixing SpeedHomogenizing PowerHomogenizing SpeedHeating
VM5050L0.75 KW0-60 rmp1.5 kw0-3000rpmElectric heating
VM100100L1.5 kw0-60 rmp3 kw0-3000rpmElectric heating
VM200200L2.2 kw0-60 rmp4 kwAt room temperature -0.05MpaElectric heating
VM300300L3 KW0-60 rmp7.5 kw0-3000rpmElectric or steam heating
VM500500L4 KW0-60 rmp2.2 kwAt room temperature -0.05MpaElectric or steam heating
VM10001000L5.5 KW0-60 rmp4 kwAt room temperature -0.05MpaElectric or steam heating
VM20002000L7.5 KW0-50 rpm5.5 kwAt room temperature -0.05MpaElectric or steam heating
VM30003000L11 KW0-50 rpm5.5 kwAt room temperature -0.05MpaElectric or steam heating
VM...Customized
