Homogeneous Emulsifying Mixer
HP100
This equipment is designed especially for cosmetic and pharmaceutical industry on the production of small batch of high-grade products, and frequently producing a variety of products; It is the priority for beauty industry, the most evident advantage of which is: down homogenizer, the power of which is higher and it is very effective for high viscosity material. The cap of main pot could be lifted flexibly, which helps a lot for cleaning the pots. The dumping discharging function could ensure the greatest extent on outlet of finished material, avoiding the waste of material. It is applied for the large volume production, which is the priority for small and medium size enterprise.
Quantity:

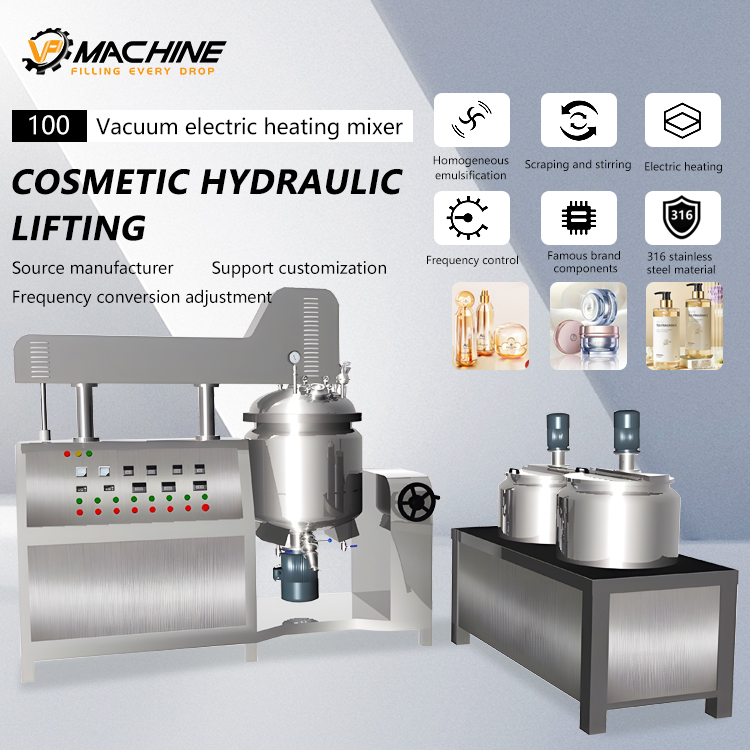

Vacuum Homogenizing Mixer
This equipment is designed especially for cosmetic and pharmaceutical industry on the production of small batch of high-grade products, and frequently producing a variety of products; It is the priority for beauty industry, the most evident advantage of which is: down homogenizer, the power of which is higher and it is very effective for high viscosity material. The cap of main pot could be lifted flexibly, which helps a lot for cleaning the pots. The dumping discharging function could ensure the greatest extent on outlet of finished material, avoiding the waste of material. It is applied for the large volume production, which is the priority for small and medium size enterprise.
Application:
1. Composite scraper impeller is for all kinds of complex formula, optimizing energy efficiency.
2. Ptfe scraper caters to agitation of tank, scraping the pot wall effiently.
3. Homogenizer is installed at the bottom of the pot, increasing the power of the motor more thoroughly and more powerful. It could also give full play to the effect of homogeneous for a small amount of production.
4. Motor with strength balanced isotactic curve and accordingly stator could realize high energy shear fluid, grinding, centrifugal, ensuring paste is exquisite, smooth; Pot body and pipe surface mirror polishing is 300 mesh (health), conforming to the cosmetic and the requirements of GMP.
5. Homogenizer with frequency control of motor speed is optional, the highest rotating speed of which is 3000r / min.
2. Ptfe scraper caters to agitation of tank, scraping the pot wall effiently.
3. Homogenizer is installed at the bottom of the pot, increasing the power of the motor more thoroughly and more powerful. It could also give full play to the effect of homogeneous for a small amount of production.
4. Motor with strength balanced isotactic curve and accordingly stator could realize high energy shear fluid, grinding, centrifugal, ensuring paste is exquisite, smooth; Pot body and pipe surface mirror polishing is 300 mesh (health), conforming to the cosmetic and the requirements of GMP.
5. Homogenizer with frequency control of motor speed is optional, the highest rotating speed of which is 3000r / min.
| Model | Working Volume | Mixing Power | Mixing Speed | Homogenizing Power | Homogenizing Speed | Heating |
|---|---|---|---|---|---|---|
| VM50 | 50L | 0.75 KW | 0-60 rmp | 1.5 kw | 0-3000rpm | Electric heating |
| VM100 | 100L | 1.5 kw | 0-60 rmp | 3 kw | 0-3000rpm | Electric heating |
| VM200 | 200L | 2.2 kw | 0-60 rmp | 4 kw | At room temperature -0.05Mpa | Electric heating |
| VM300 | 300L | 3 KW | 0-60 rmp | 7.5 kw | 0-3000rpm | Electric or steam heating |
| VM500 | 500L | 4 KW | 0-60 rmp | 2.2 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM1000 | 1000L | 5.5 KW | 0-60 rmp | 4 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM2000 | 2000L | 7.5 KW | 0-50 rpm | 5.5 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM3000 | 3000L | 11 KW | 0-50 rpm | 5.5 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM... | Customized | |||||
