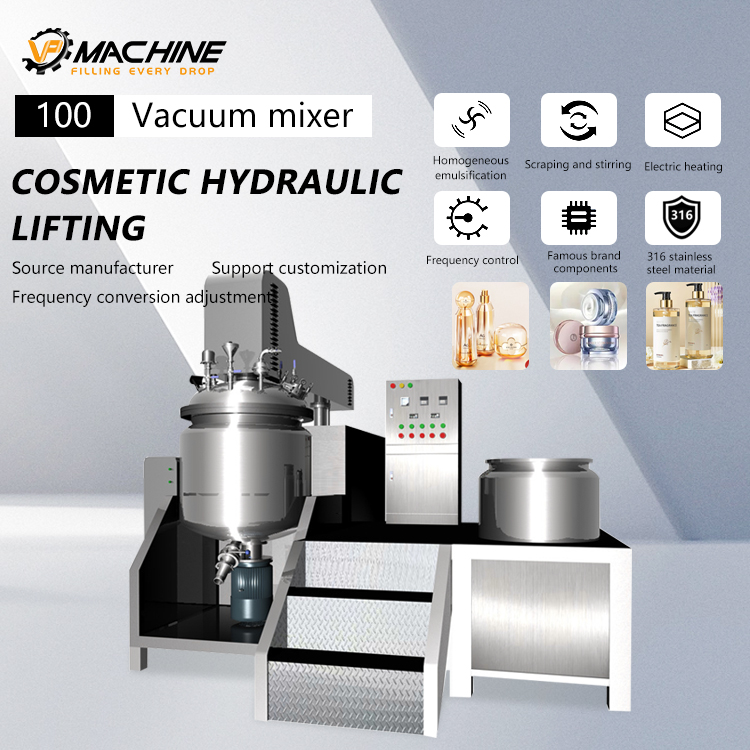

Vacuum Homogenizing Emulsifying Mixer
HP100L
This equipment is designed especially for cosmetic and pharmaceutical industry on the production of small batch of high-grade products, and frequently producing a variety of products; It is the priority for beauty industry, the most evident advantage of which is: down homogenizer, the power of which is higher and it is very effective for high viscosity material. The cap of main pot could be lifted flexibly, which helps a lot for cleaning the pots. The dumping discharging function could ensure the greatest extent on outlet of finished material, avoiding the waste of material. It is applied for the large volume production, which is the priority for small and medium size enterprise.
Quantity:
Description:
Vacuum emulsifying mixer machine consist of Main emulsifying tank, Vacuum system, Fixed type vacuum system (OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics/chemical/food products.Performance & Frature:
Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo
Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine.
Chemical Industry: Polyester, Synthetic fiber Paint
Chemical Industry: Polyester, Synthetic fiber Paint
Industry: Paints, Synthetic resin paint
Others: Color, Wax, Shoe cream, Coating liquid
| Model | Working Volume | Mixing Power | Mixing Speed | Homogenizing Power | Homogenizing Speed | Heating |
|---|---|---|---|---|---|---|
| VM50 | 50L | 0.75 KW | 0-60 rmp | 1.5 kw | 0-3000rpm | Electric heating |
| VM100 | 100L | 1.5 kw | 0-60 rmp | 3 kw | 0-3000rpm | Electric heating |
| VM200 | 200L | 2.2 kw | 0-60 rmp | 4 kw | At room temperature -0.05Mpa | Electric heating |
| VM300 | 300L | 3 KW | 0-60 rmp | 7.5 kw | 0-3000rpm | Electric or steam heating |
| VM500 | 500L | 4 KW | 0-60 rmp | 2.2 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM1000 | 1000L | 5.5 KW | 0-60 rmp | 4 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM2000 | 2000L | 7.5 KW | 0-50 rpm | 5.5 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM3000 | 3000L | 11 KW | 0-50 rpm | 5.5 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM... | Customized | |||||
