VP 5-5000L paste cosmetic perfume mixing machine stainless steel mixing tank with heating function
m5
Function: Stirring
Usage: Cosmetic Industry
Mixing type: Electrical Powered Agitator
Appliance: Shampoo Cosmetic Cream Mixing Machine
Stirrer type: Paddling Stirring
Motor: SIMENS
Application scope: Liquid Washing Products
Advantage: Longer Shelf Life
Feature: Long Durable Life. Suitable
Usage: Cosmetic Industry
Mixing type: Electrical Powered Agitator
Appliance: Shampoo Cosmetic Cream Mixing Machine
Stirrer type: Paddling Stirring
Motor: SIMENS
Application scope: Liquid Washing Products
Advantage: Longer Shelf Life
Feature: Long Durable Life. Suitable
minimum order
1 set
Supply Ability
100000set / Month
Country of Origin
China
Stock Time
7Day
Quantity:
Detergent Soap Hair Shampoo blending Making Machine
1. The parts in contact with the raw materials are designed by food grade 304/316 stainless steel. 2. The barrel is made of stainless steel, double-layered with oil, and the volume is 100L.
3. Filling with servo motor, changing the filling amount (0.5-18.0ml) by adjusting the data in the man-machine interface; servo motor lifting mold, changing the lifting height (mm) by adjusting the data in the man-machine interface
4. PLC interface control, more user-friendly, filling volume, and filling speed is set in the PLC

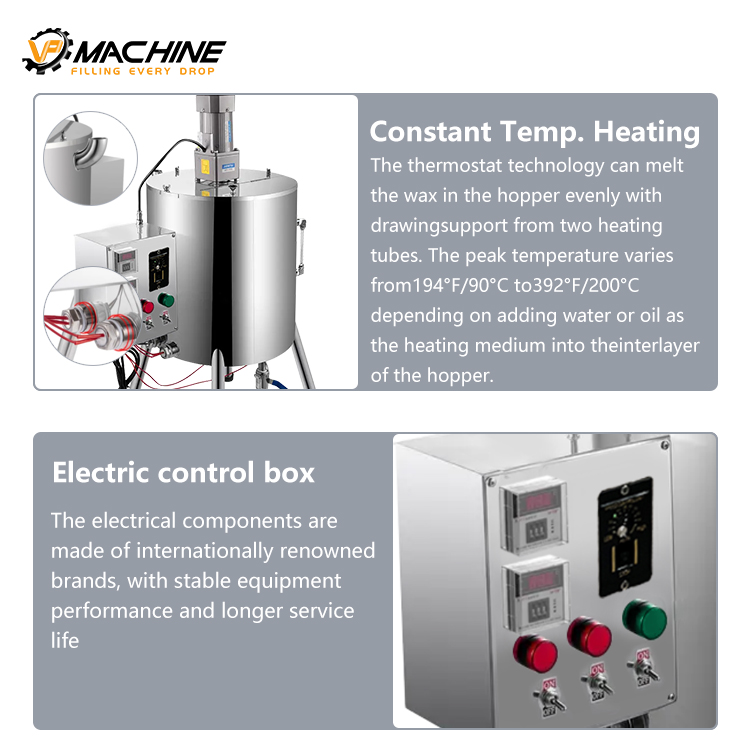

5. Independent heating system control
Technical parameter :
1. The machine can be configured with heating, stirring, emulsifying, homogenizing, and vacuuming functions. The barrel is heated by means of compartment heating to increase the heating area of the raw material and effectively control the heating temperature of the raw material.
1. The machine can be configured with heating, stirring, emulsifying, homogenizing, and vacuuming functions. The barrel is heated by means of compartment heating to increase the heating area of the raw material and effectively control the heating temperature of the raw material.

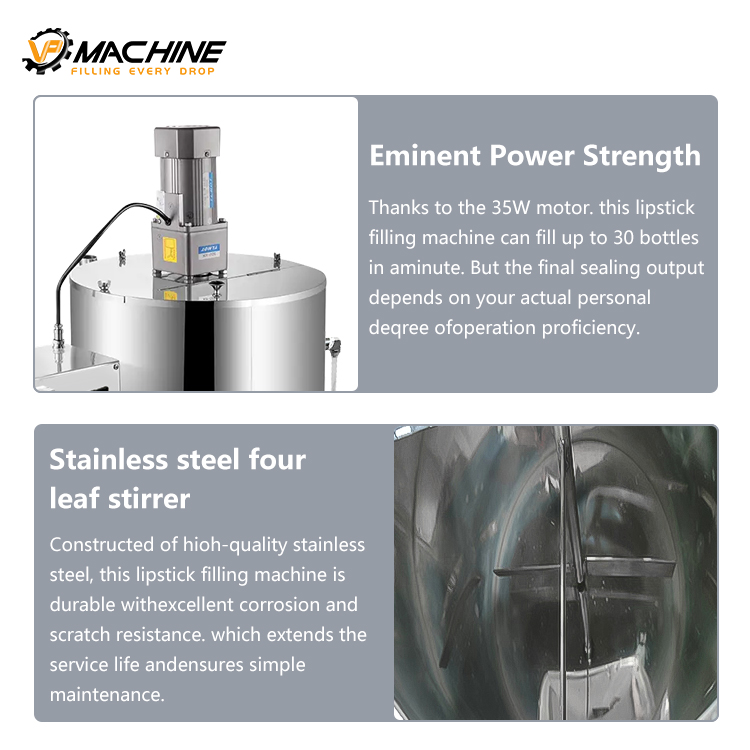

2. The speed control motor can effectively control the stirring speed.
3. Option Vacuum design to avoid bubble formation during work
4. Option With venting holes to avoid gas explosion
5. Easy to clean, high efficiency, wide application range, etc.
| Model | Working Volume | Mixing Power | Mixing Speed | Homogenizing Power | Homogenizing Speed | Heating |
|---|---|---|---|---|---|---|
| VP-M5 | 5L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M10 | 10L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M15 | 15L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M30 | 30L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M50 | 50L | 0.75 kw | 0-63 rpm | 0 | 0 | Electric heating |
| VP-M100 | 100L | 1.5 KW | 0-63 rpm | 4 kw | 0-3550 rpm | Electric or steam heating |
| VP-M200 | 200L | 2.2 KW | 0-63 rpm | 5.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M300 | 300L | 3 KW | 0-63 rpm | 7.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M500 | 500L | 4 KW | 0-63 rpm | 11 kw | 0-3550 rpm | Electric or steam heating |
| VP-M1000 | 1000L | 5.5 KW | 0-63 rpm | 15 kw | 0-3550 rpm | Electric or steam heating |
| VP-M2000 | 2000L | 5.5 KW | 0-63 rpm | 18.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M3000 | 3000L | 11 KW | 0-63 rpm | 22 kw | 0-3550 rpm | Electric or steam heating |
| VP-M5000 | 5000L | 11 KW | 0-63 rpm | 27 kw | 0-3550 rpm | Electric or steam heating |
| VP-M**** | Customized | |||||
