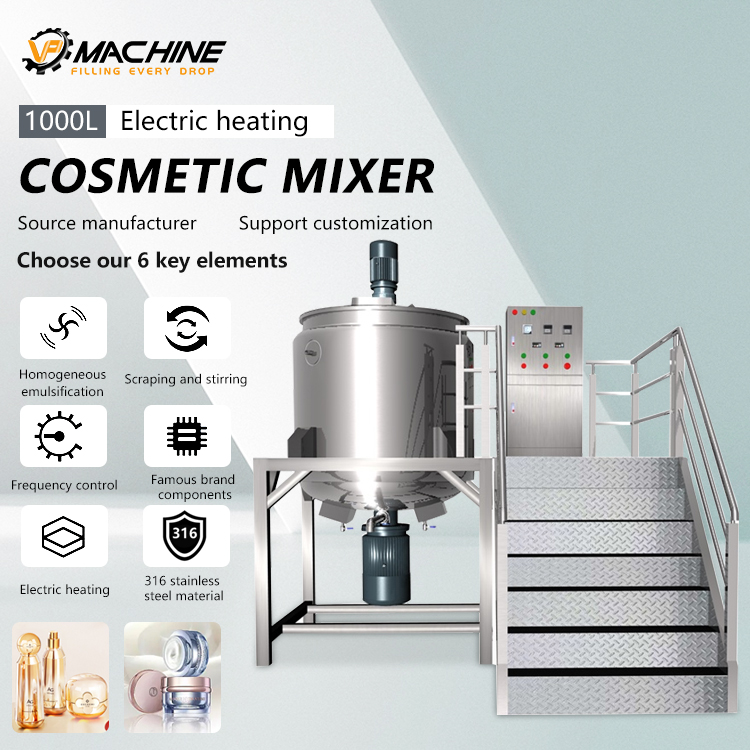

500L 1000L stainless steel double jacket electric heating mixing homogenizing tank
M1000L
Our 500L 1000L stainless steel double jacket heating mixing homogenizing tanks are engineered for precision and efficiency in industrial settings. Crafted from high-quality stainless steel, these tanks ensure product purity and longevity. The double jacket design maximizes heat transfer, reducing energy consumption. With a homogenizing function for uniform mixing, these mixing tanks are ideal for enhancing production processes. The large-capacity mixing pot can produce large quantities of products at one time, which is a good solution to the problem that too many mixing tank can not be placed in the small location of the customer’s site.
Quantity:
Description
Our 500L 1000L stainless steel double jacket heating mixing homogenizing tanks are engineered for precision and efficiency in industrial settings. Crafted from high-quality stainless steel, these tanks ensure product purity and longevity. The double jacket design maximizes heat transfer, reducing energy consumption. With a homogenizing function for uniform mixing, these mixing tanks are ideal for enhancing production processes. The large-capacity mixing pot can produce large quantities of products at one time, which is a good solution to the problem that too many mixing tank can not be placed in the small location of the customer’s site.Performance & Feature:
1. 500L 1000L 2000L stainless steel double jacket heating mixing homogenizing tank might mixing and disperse viscously, solid and liquid etc. It’s used for produce liquid washing products like shampoo, dish washing, hand washing, lotion, liquid soap, detergent, gel etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluoroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, It can exert homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick product; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5. Main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed
Finished products can be discharged by valve or match a screw pump.
Homogeneous function is generally divided into: upper homogeneous, bottom homogeneous, internal and external circulation homogeneous (according to the production process selection).
Pot body three stainless steel structure, mirror polished, in full compliance with GMP requirements.Half open cover type, easy to feed, easy to clean.
2. Polytetrafluoroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, It can exert homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick product; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5. Main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed
Finished products can be discharged by valve or match a screw pump.
Homogeneous function is generally divided into: upper homogeneous, bottom homogeneous, internal and external circulation homogeneous (according to the production process selection).
Pot body three stainless steel structure, mirror polished, in full compliance with GMP requirements.Half open cover type, easy to feed, easy to clean.
| Model | Working Volume | Mixing Power | Mixing Speed | Homogenizing Power | Homogenizing Speed | Heating |
|---|---|---|---|---|---|---|
| VM50 | 50L | 0.75 KW | 0-60 rmp | 1.5 kw | 0-3000rpm | Electric heating |
| VM100 | 100L | 1.5 kw | 0-60 rmp | 3 kw | 0-3000rpm | Electric heating |
| VM200 | 200L | 2.2 kw | 0-60 rmp | 4 kw | At room temperature -0.05Mpa | Electric heating |
| VM300 | 300L | 3 KW | 0-60 rmp | 7.5 kw | 0-3000rpm | Electric or steam heating |
| VM500 | 500L | 4 KW | 0-60 rmp | 2.2 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM1000 | 1000L | 5.5 KW | 0-60 rmp | 4 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM2000 | 2000L | 7.5 KW | 0-50 rpm | 5.5 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM3000 | 3000L | 11 KW | 0-50 rpm | 5.5 kw | At room temperature -0.05Mpa | Electric or steam heating |
| VM... | Customized | |||||
