Stainless Steel Flexible Vertical Powder Screw Conveyor Feeder
SLB
minimum order
1 set
Supply Ability
3000set / Month
Country of Origin
Guangzhou
Quantity:
- Place of Origin:CN;GUA
- Brand Name:Yuming
- Condition:New
- Structure:Belt conveyor
- After-sales Service Provided:Engineers available to service machinery overseas
- Type:Screw conveyor
- Voltage:220/380V
- Load Capacity:10-500T/H
- Material:stainless steel
- Certification:CE Certificate
- Power:0.4kW - 22kW
- Dimension(L*W*H):Customized Size
- Material Feature:Oil Resistant
- Model Number:SLB
- Name: Spiral Conveyor Screw Conveyor
- Application:Powder
- Product name:Screw Conveyer
- Item:Packing Machine Line
- Belt material:Steel Cord Belt
- Frame Material:SUS304/Carbon Steel
- Feature:Simple Operation
- Tank size:120 liter
- Conveyor height:1.63 m
- Usage:Material Transimission

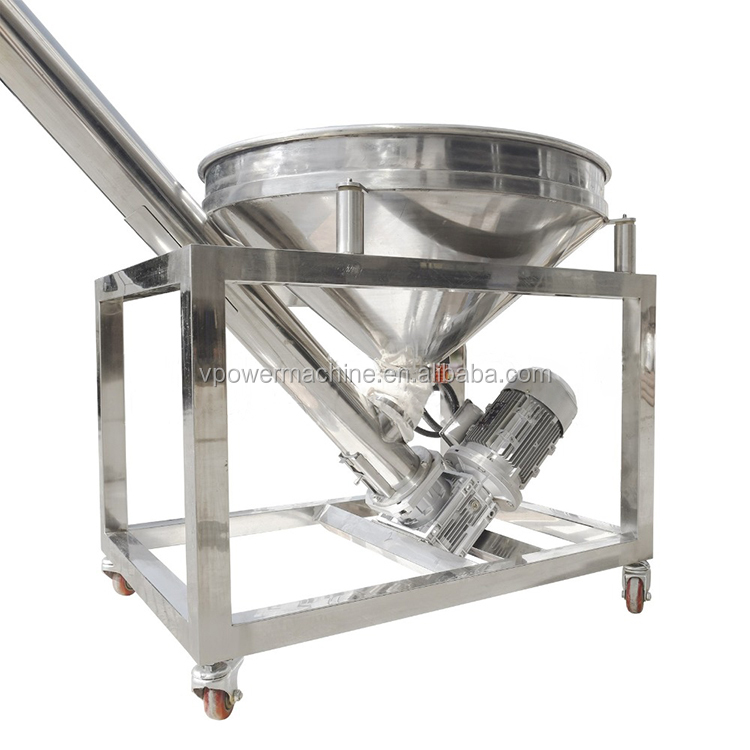

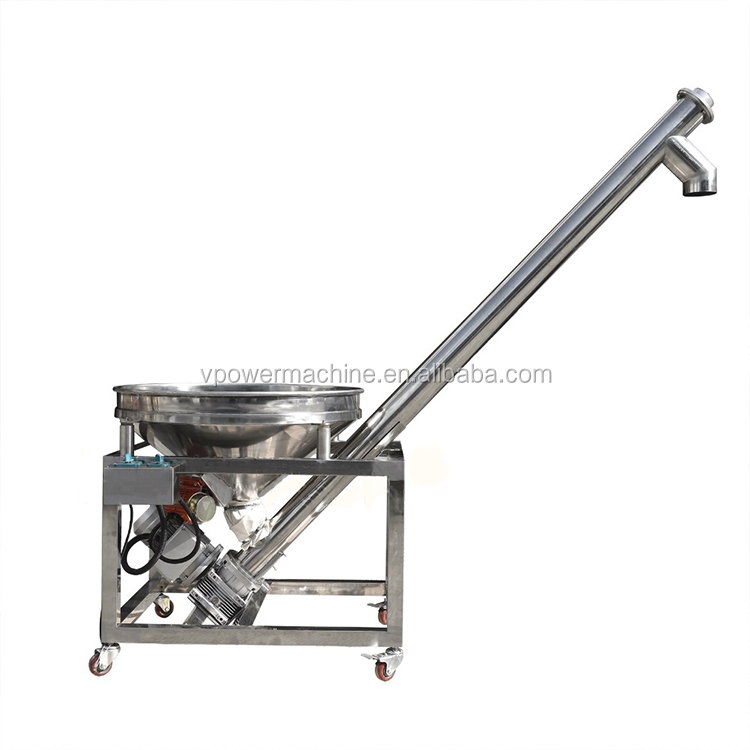

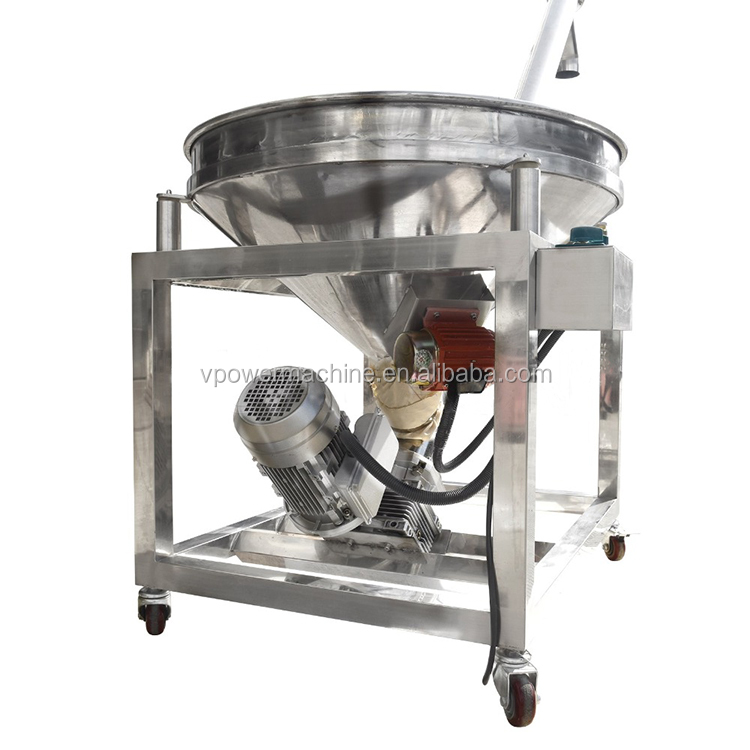

Stainless Steel Flexible Vertical Powder Screw Conveyor Feeder

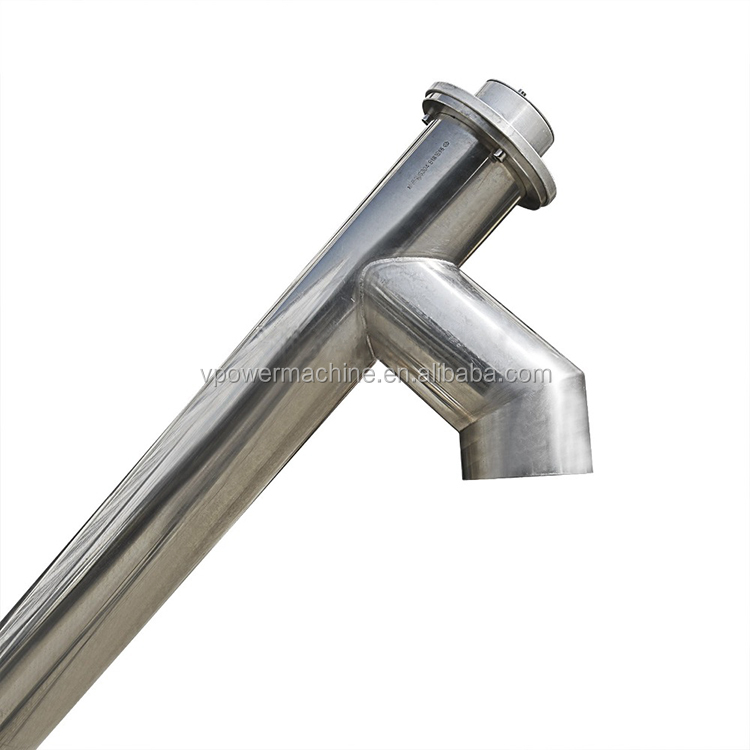

The Auger Conveyor is suitable for transferring a range of powders from ground level to packaging or filling machines or various applications, the product-feed of the conveyor is controlled to retain the product level in the product-hopper. Available from 1600mm discharge transfer Height off-ground. The auger can also be used independently for transfer.
Application: dry pellet pet food, Dry Powder, suit for food industries, cosmetic industries, and others.
Transfer capacity from 150kgs /min

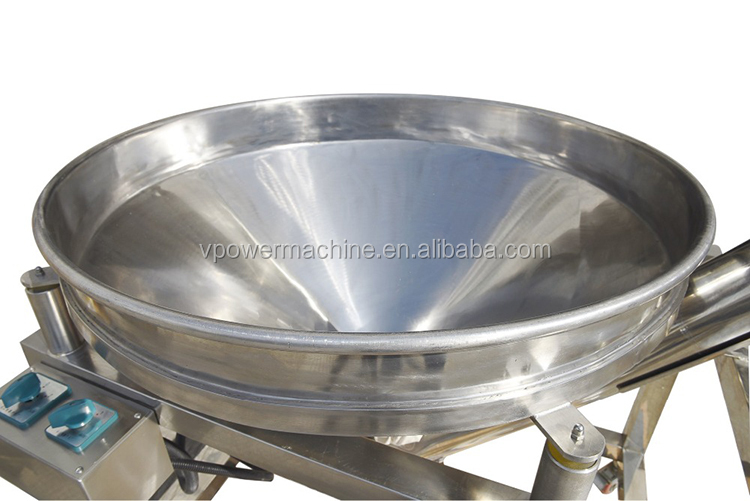

Standard model cylindrical or rectangular Hopper from 120 liters.
Supplied with a variable controller in 220V 50Hz or 110V 60Hz.
Application: dry pellet pet food, Dry Powder, suit for food industries, cosmetic industries, and others.
Transfer capacity from 150kgs /min
Standard model cylindrical or rectangular Hopper from 120 liters.
Supplied with a variable controller in 220V 50Hz or 110V 60Hz.
Features:

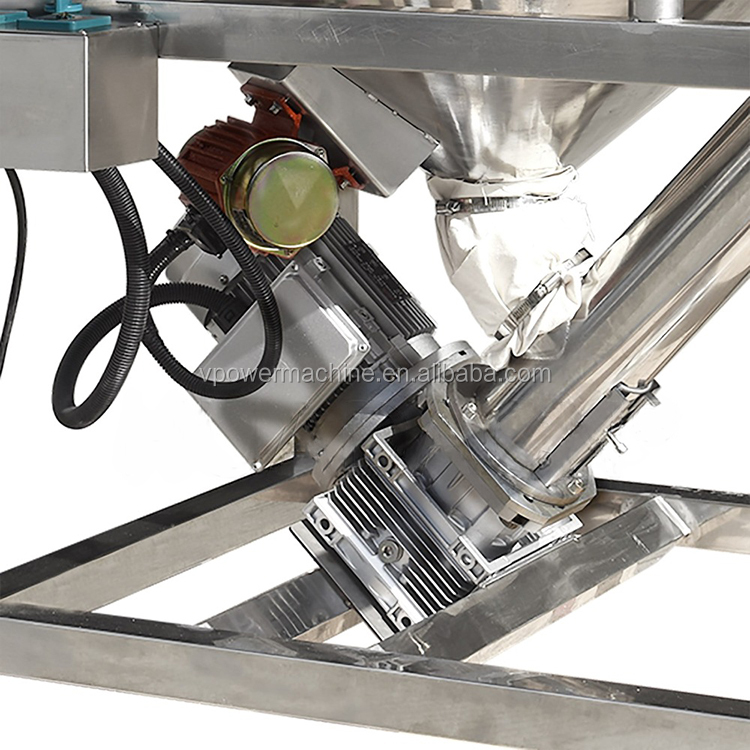

Feed hopper can be fitted with twin electric-motors: feeding motor & vibrating motor, separately controlled with variable speed.
The Auger is reversible for ground level discharge for cleaning/ quick changeover.
The Auger can be easily removed from the outer-tube for cleaning.
Special anti-dust design to protect bearing from dust.
Specification:
Model:SLB
Capacity:150KGS/MIN
Tank size:120L
Conveyor Height:1.63m (other height optional)
Motor Power:1.8KW
Voltage:220volt 50Hz / 110V 60Hz
Information needed:
What kind of products you will convey?
What's your capacity request?
What's your voltage requirement?
What's the discharge height you need ?
Do you have the requirement for the hopper size?
Feed hopper can be fitted with twin electric-motors: feeding motor & vibrating motor, separately controlled with variable speed.
The Auger is reversible for ground level discharge for cleaning/ quick changeover.
The Auger can be easily removed from the outer-tube for cleaning.
Special anti-dust design to protect bearing from dust.
Specification:
Model:SLB
Capacity:150KGS/MIN
Tank size:120L
Conveyor Height:1.63m (other height optional)
Motor Power:1.8KW
Voltage:220volt 50Hz / 110V 60Hz
Information needed:
What kind of products you will convey?
What's your capacity request?
What's your voltage requirement?
What's the discharge height you need ?
Do you have the requirement for the hopper size?
Pictures:
