Guangzhou stainless steel flexible vertical powder screw conveyor feeder
SLB
Quantity:
- Place of Origin:CN;GUA
- After-sales Service Provided:Engineers available to service machinery overseas
- Dimension(L*W*H):Customized Size
- Model Number:SLB
- Brand Name:Yuming
- Structure:Belt conveyor
- Power:1.8 kw
- Condition:New
- Material:stainless steel
- Voltage:220/380V
- Material Feature:Fire Resistant
- Type:Screw conveyor
- Load Capacity:150 kg/min
- Certification:ISO
- Product name:Spiral Conveyor Screw Conveyor
- Application:Powder
- Name:Screw Conveyer
- Belt material:Steel Cord Belt
- Frame Material:SUS304/Carbon Steel
- Feature:Simple Operation
- Tank size:120 Liter
- Conveyor height:1.63 m
- Usage:Material Transimission
- Warranty:1 Year
Stainless Steel Flexible Vertical Powder Screw Conveyor Feeder
Product Description
The Auger Conveyor is suitable for transferring a range of powders from ground level to packaging or filling machines or various applications, the product-feed of the conveyor is controlled to retain the product level in the product-hopper. Available from 1600mm discharge transfer Height off-ground. The auger can also be used independently for transfer.
Application: dry pellet pet food, Dry Powder, suit for food industries, cosmetic industries, and others.
Transfer capacity from 150kgs /min
Standard model cylindrical or rectangular Hopper from 120 liters.
Supplied with a variable controller in 220V 50Hz or 110V 60Hz.
Application: dry pellet pet food, Dry Powder, suit for food industries, cosmetic industries, and others.
Transfer capacity from 150kgs /min
Standard model cylindrical or rectangular Hopper from 120 liters.
Supplied with a variable controller in 220V 50Hz or 110V 60Hz.
Features:
Feed hopper can be fitted with twin electric-motors: feeding motor & vibrating motor, separately controlled with variable speed.
The Auger is reversible for ground-level discharge for cleaning/ quick changeover.
The Auger can be easily removed from the outer-tube for cleaning.
Special anti-dust design to protect bearing from dust.
Specification:
Model:SLB
Capacity:150KGS/MIN
Tank size:120L
Conveyor Height:1.63m (other height optional)
Motor Power:1.8KW
Voltage:220volt 50Hz / 110V 60Hz
Information needed:
What kind of products will you convey?
What's your capacity request?
What's your voltage requirement?
What's the discharge height you need?
Do you have the requirement for the hopper size?
Feed hopper can be fitted with twin electric-motors: feeding motor & vibrating motor, separately controlled with variable speed.
The Auger is reversible for ground-level discharge for cleaning/ quick changeover.
The Auger can be easily removed from the outer-tube for cleaning.
Special anti-dust design to protect bearing from dust.
Specification:
Model:SLB
Capacity:150KGS/MIN
Tank size:120L
Conveyor Height:1.63m (other height optional)
Motor Power:1.8KW
Voltage:220volt 50Hz / 110V 60Hz
Information needed:
What kind of products will you convey?
What's your capacity request?
What's your voltage requirement?
What's the discharge height you need?
Do you have the requirement for the hopper size?

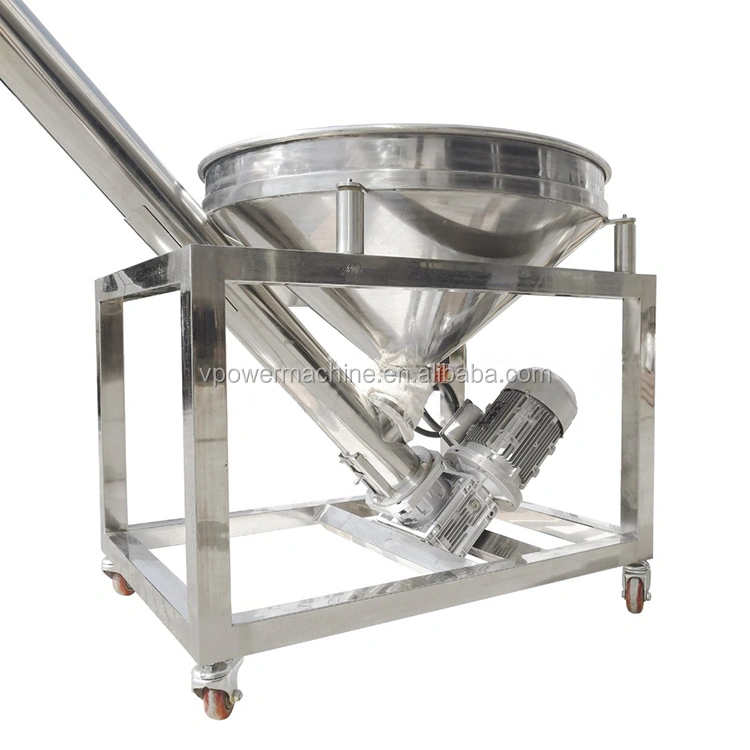

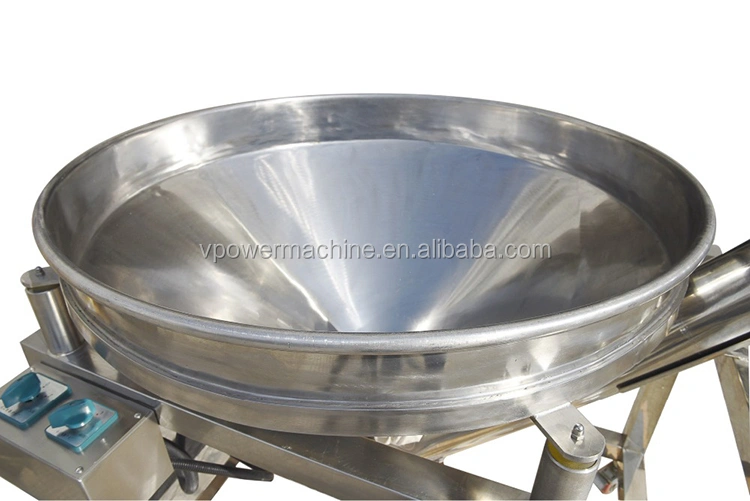

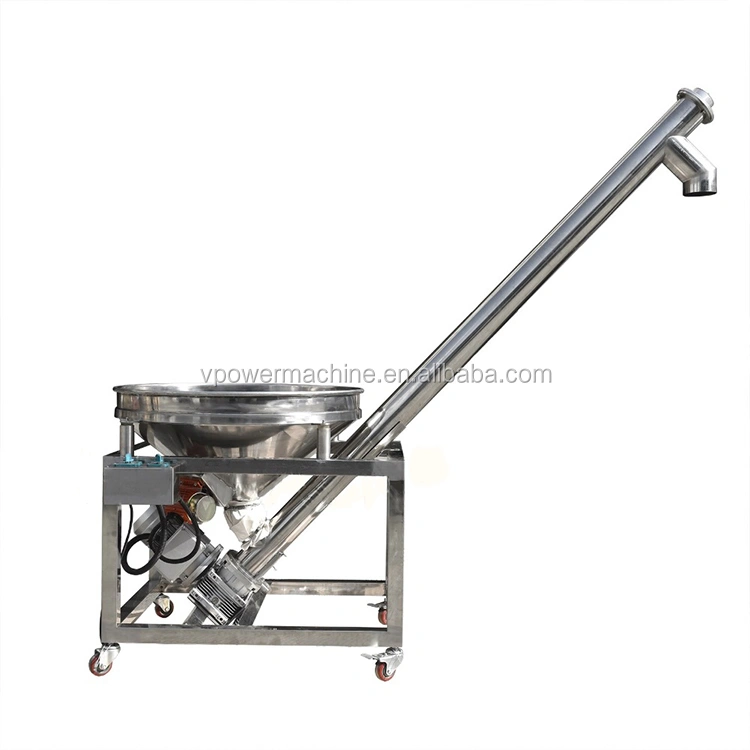

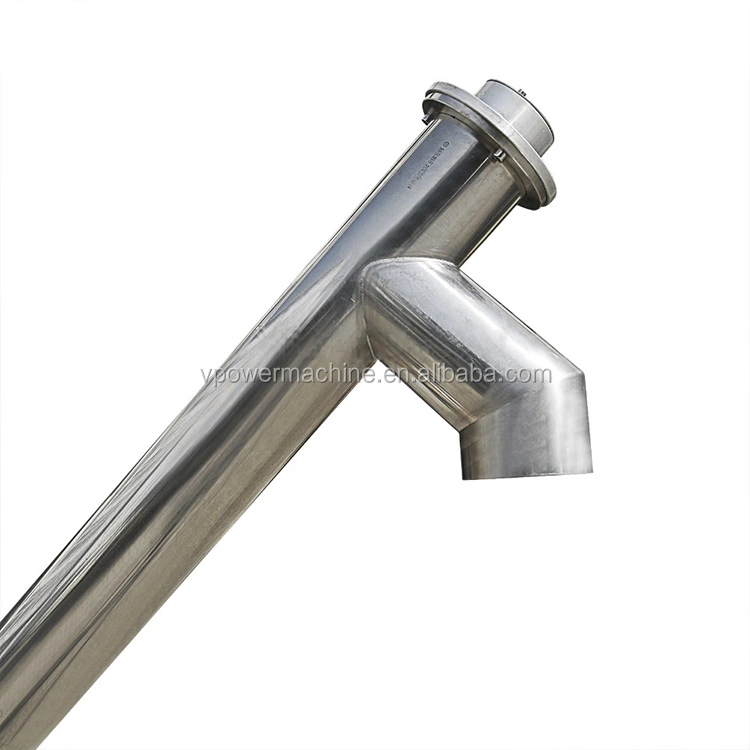

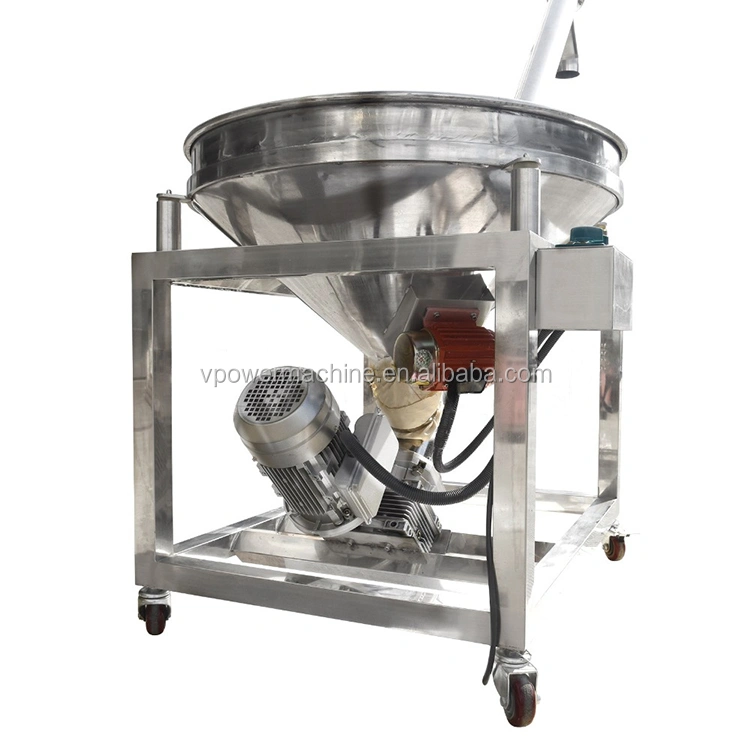

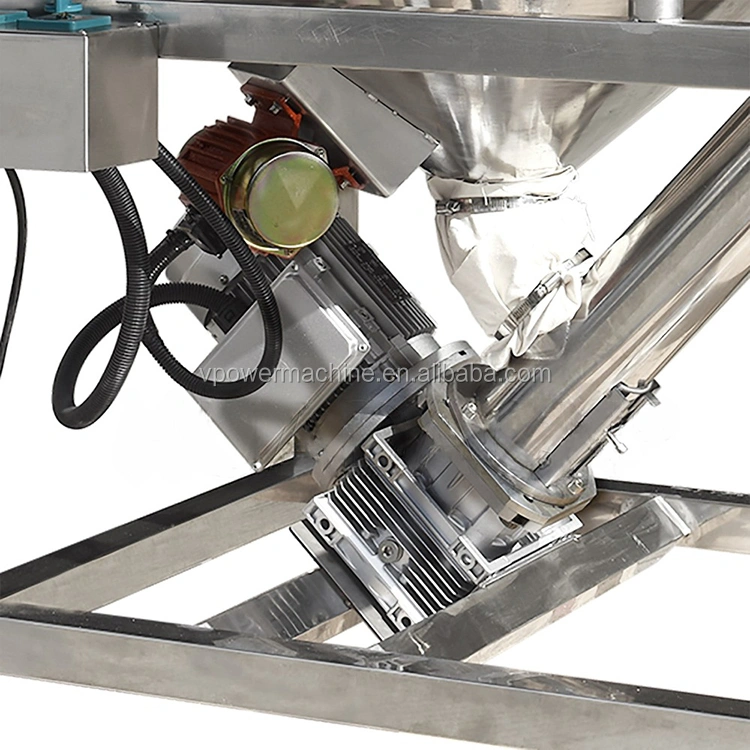

Detailed Images
