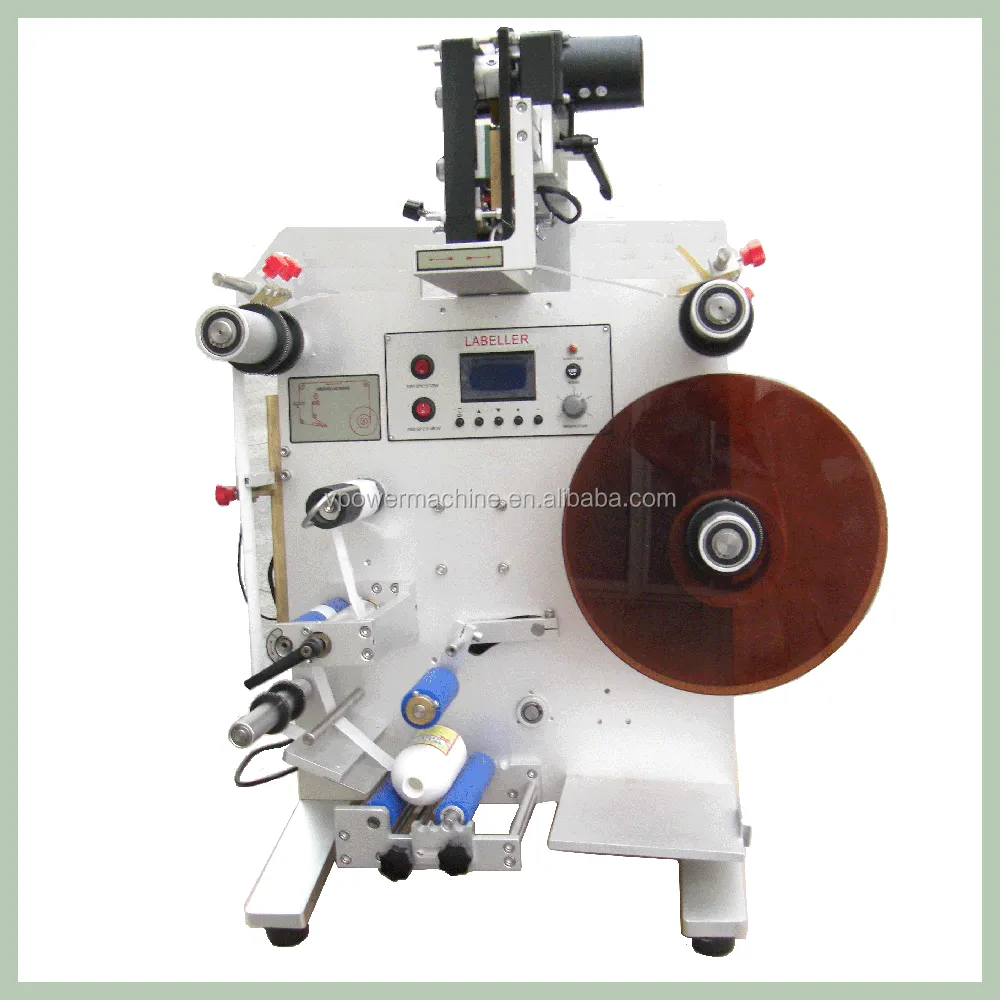

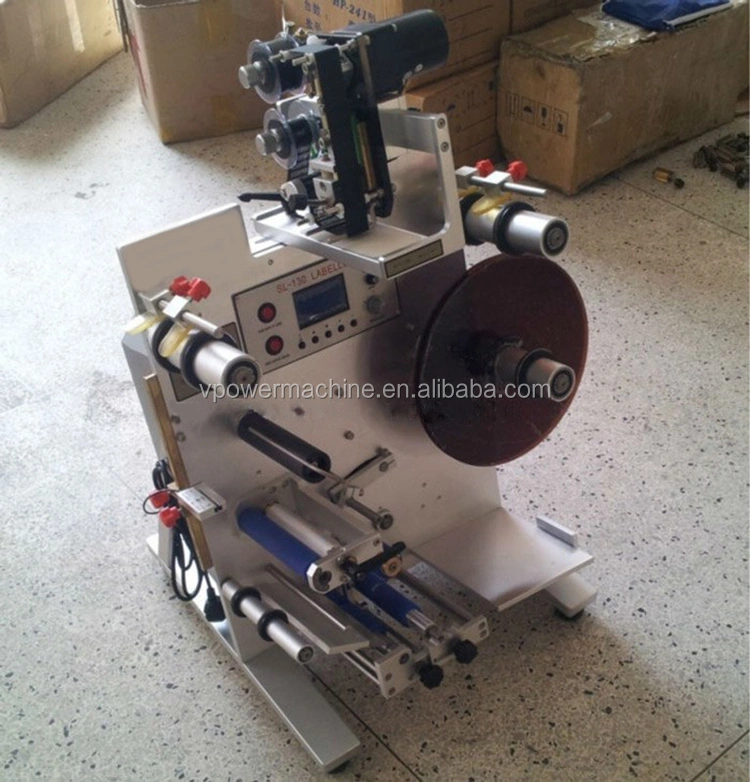

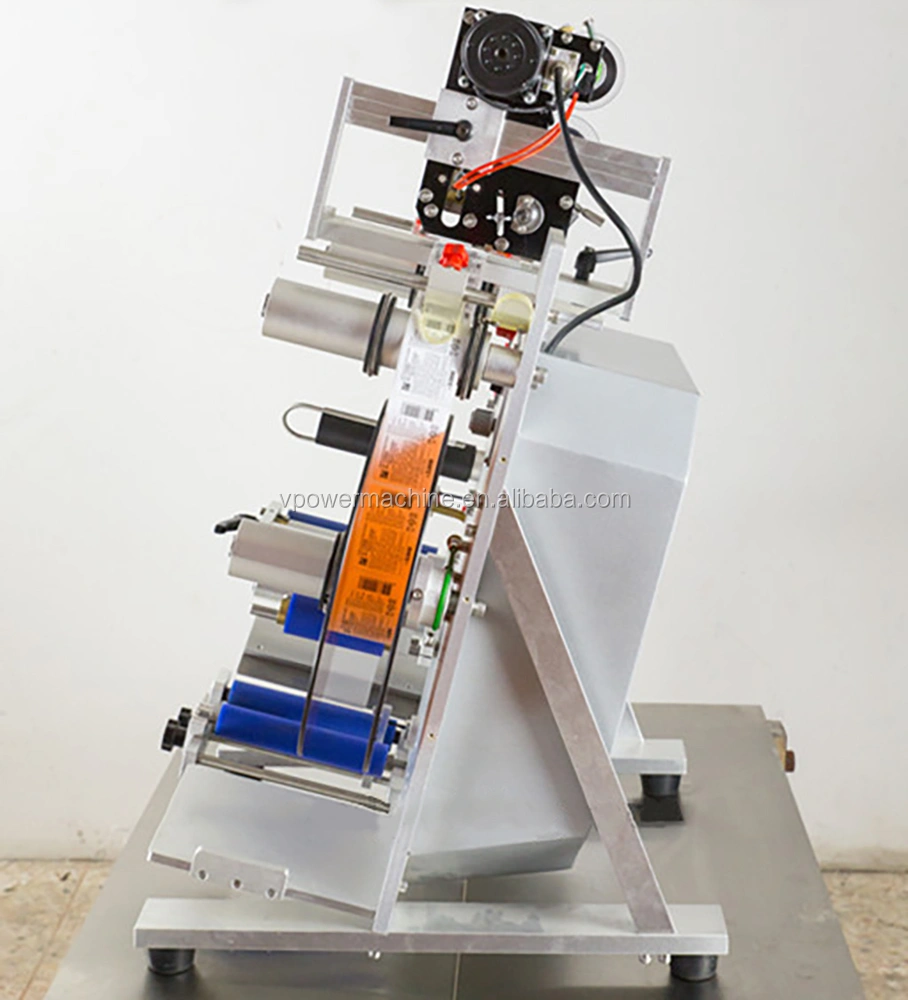

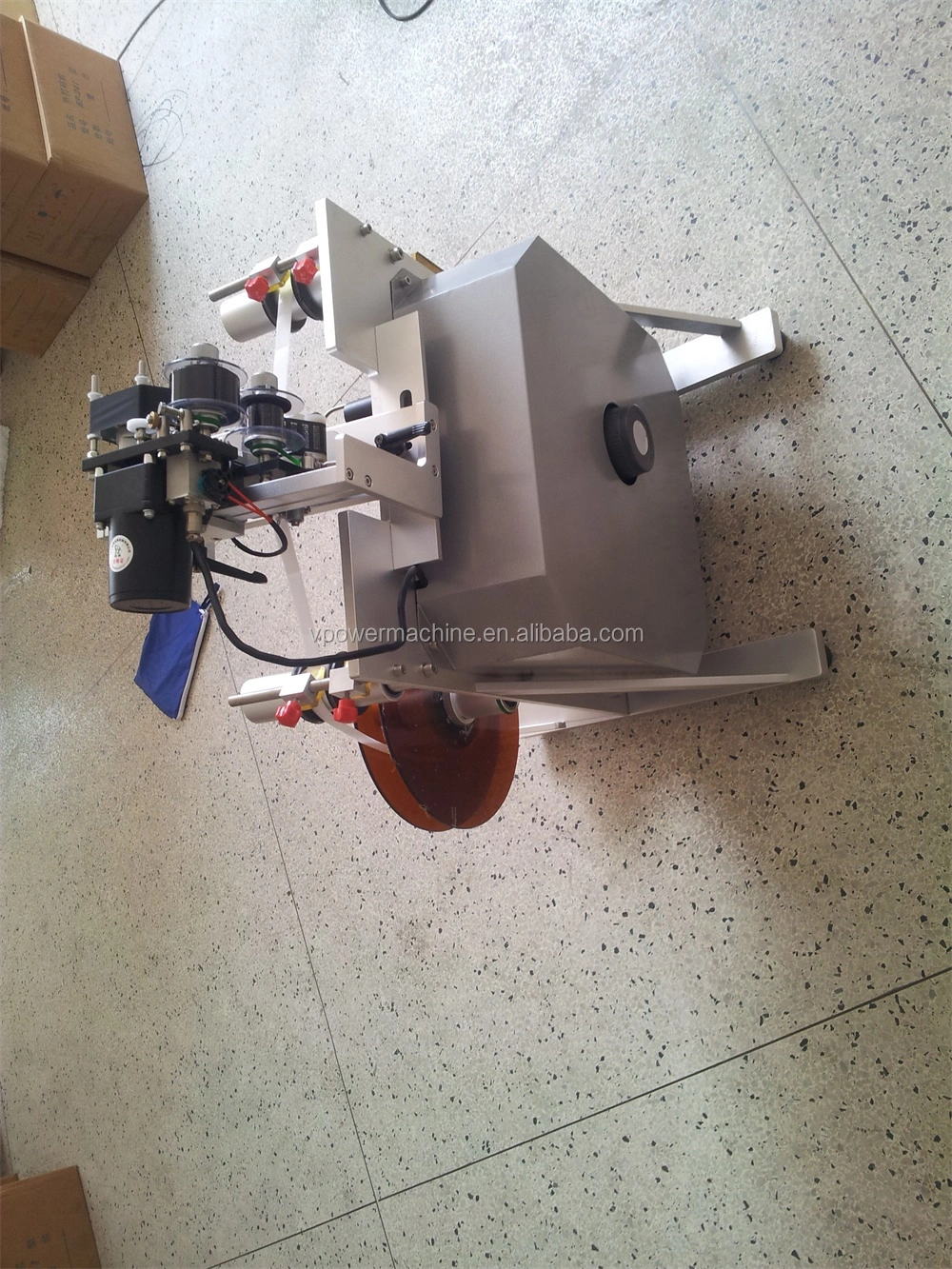

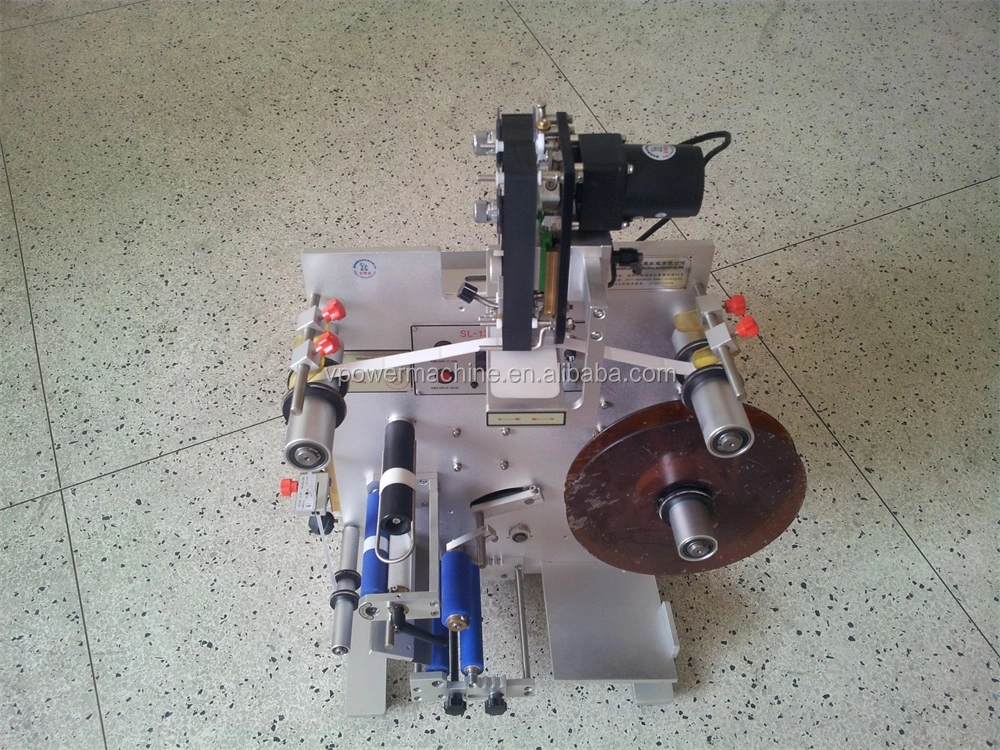

Guangzhou Factory SL-130D Self-Adhesive Label and Non-Dry Wet Glue Wrap Round Bottle Double Sided Labeling Machine With Coder

This machine label 1 round bottle with 2 labels, so long as the 2 label's length is same.
This labeling machine is used for labeling and coding on various round bottle, coding, such as glass bottles, plastic bottles, cans and so.

1, adopt precise electromagnetic clutch
2, advanced aluminum alloy anodizing with a much longer lifetime
3, the excellent motor can meet the large load, long-time operation
4, All parts and standard parts are made of stainless steel materials and refined
5, PLC control panel and LCD display
6, excellent inspection standard optical dipole to ensure high precision

Technical parameters:

Model:                                                       SL-130D
Voltage:                                                     AC220/110 V,50/60HZ
Power:                                                       150W
Max Label Size :                                        120 (W) * 400 (L) mm
Minimum Label Size:                                 10 (W) * 30 (L) mm
Round Bottle Diameter:                              20-125 mm
Label Roll Inner diameter:                          75mm
Label Roll Outer Diameter:                         300mm
Dimension:                                                  580 * 680 * 860mm
Weight:                                                       45kg (including code machine)

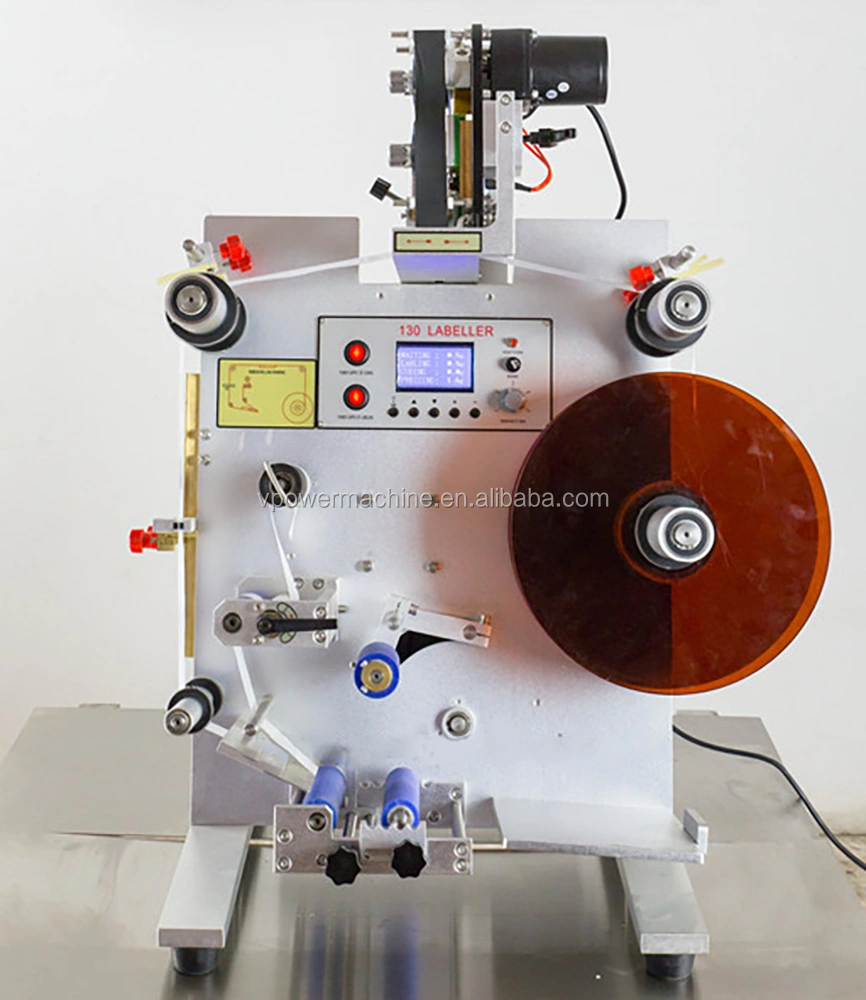

Descriptions for Control System

Labeling Power: to control the power switch of the complete machine.
Coding Power: to control the power supply for the coder.
Coder Detection: to detect whether the coder works normally.
Coder Temp Control: to control the codes' heating temperature.
Display screen: to display holding time, labeling time, pressing bottle time and single/double-label as well as function as a counter.
Single/double-label selection key.
selection key for functions on the display screen

Keys for setting the time parameter; press the two keys at the same time for a second and the counter will set to zero automatically.

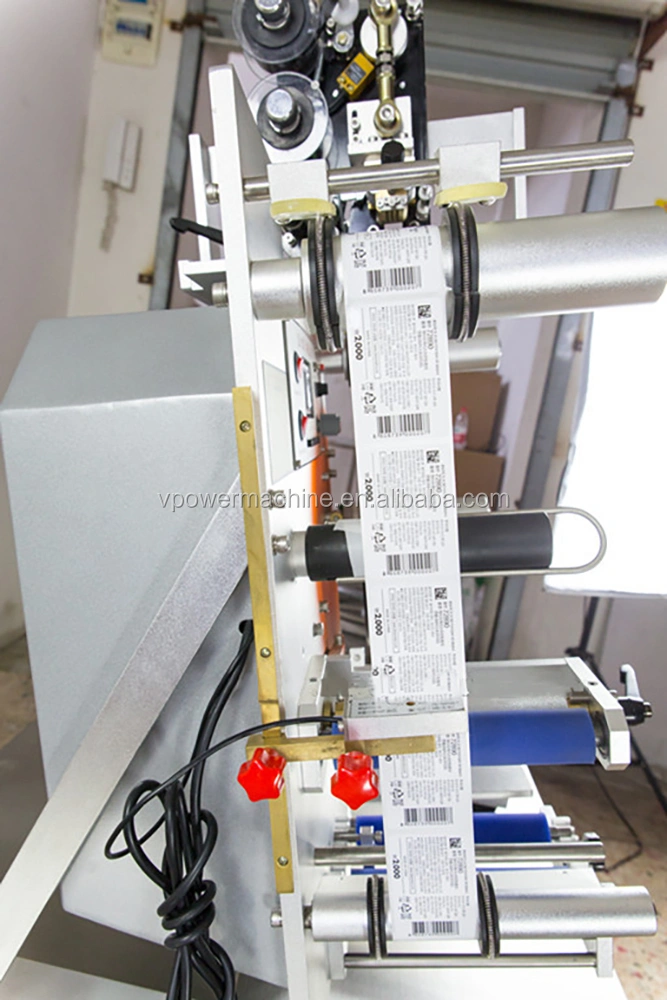

How to Install Label Tape and Adjust its Tightness

1. Release the handle of the press belt and wind the label tape in accordance with label tape winding draining; clamp the label tape head with a U-type clip and then compress the handle of the press belt.
2. The label tape’s tightness must be moderate as a too tight tape may be broken while a too loose one may have an impact on the labeling position. The micro-pressure block’s pressure and the brake band’s tightness can be adjusted in accordance with actual conditions.
3. The waste tape’s tightness can be adjusted through the hex socket screw on the tape winding wheel.

How to Adjust Rotary Torque of Bottle

Adjust the distance between the drive and driven rollers in accordance with the bottle’s outer diameter, and then adjust the pressure of the press roll for pressing bottle; the pressure value is subject to the smooth detachment of the label and no slipping off the bottle during labeling.

How to Attach a Label

1. Adjust the longitudinal position of the bottle detecting photoelectric coupling and the label to make the label on the accurate position to be labeled on the bottle.
2. Switch on Labeling Power: if coding is needed, switch on Coder Power and Coder Temp Control (See Instructions for details on operating the coder ).
3. Set pressing bottle time, holding time and labeling time on the control panel as required. In the case of double-label, it’s necessary to set the interval. After setting all parameters, put in the bottle and the machine will label the bottle automatically.

Package: Special Export Plywood Case Packing

Warranty: One year from the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by the un-properly operation, then the Seller would offer the new parts for free.
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
Documents: We can provide Telex release bill of loading or Original Bill of loading, Certificate of the original. Other documents can be provided according to your requirement.

 About after-sale service of our machinery
Usually, machine guarantee time is about 1 year. Within guarantee time. Machine breaking caused by the machine itself design defect, we are responsible for it. We can provide free charge breaking part. If machine breaking caused by the human factor, the user need take responsibility for it, we will provide technical support.

About goods shipping of our machinery
We have long time working shipping forwarder. We can do our best to send the machine to your port safe and sound. If you need, we can help you do customs clearance.

About payment term of our machinery
Currently, in order to protect you and our rights. Both us in safe, hope we can do business in a safe way.
L/C(>20000USD),Western Union,T/T(Bank transfer),Paypal,Alibaba
which one are you want, we can discuss it.

About online Service of our machinery
24 hours online to solve any problem. Your email will be replied within 12 hours. Your satisfaction is our pursuit. Sincerely hope our cooperation.

Training:
1. We offer machines training system, the customer can choose training in our factory or in customer workshop. The normal training days are 3-5 days.
2. We offer operation manual to the customer.
3. We offer training video and machine operation video to the customer.
4. We offer remote control service if the customer does not know how to operate and use the machine.

Installation:
We will dispatch engineers to carry out installation and debug of the equipment in buyer's place if requested. The cost for International Double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work.

Warranty:
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials. The machine will be guaranteed in one year, in the guaranteed year, any spare parts are broken due to supplier’s quality issue, the spare parts will be supplied free for the customer, customer needs to pay the freight cost if the parcel weight more than 500gram.

Business Philosophy
Quality is our life
Good cooperation starts from the trust

Scope of Business
Our company is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are soap machine, packing machine, labeling machine, capping machine, sealing machine, wrapping machine, vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel mixing tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.

Q: Are you factory or trading company?
A: We are factory focus on designing, manufacturing, assembling, installing and debugging various types of cosmetic machinery such as filling machines, capping machines, labeling machines, soap machines, sealing machines, packing machine and printing machines etc since 2004.

Q: Can you send a video showing how your machine works?
A: Certainly, we have made all our machine's video.

Q: Do you make a test before shipment?
A: We always test machine fully and make sure it works smoothly before shipment.

Q: What is the term of payment and trade terms?
A: We accept T/T, Western Union, MoneyGram, Alibaba Trade Assurance payments.
Trade Term : EXW,FOB,CIF,CNF.

Q: What’s the MOQ and warranty?
A: There is no MOQ, welcome to order, we promise 12-month warranty.

Q: What kind of package for shipping?
A: Use the basic stretch film wrap around the whole machine, and packed with the exported wooden case, also can be according to your requirements.
