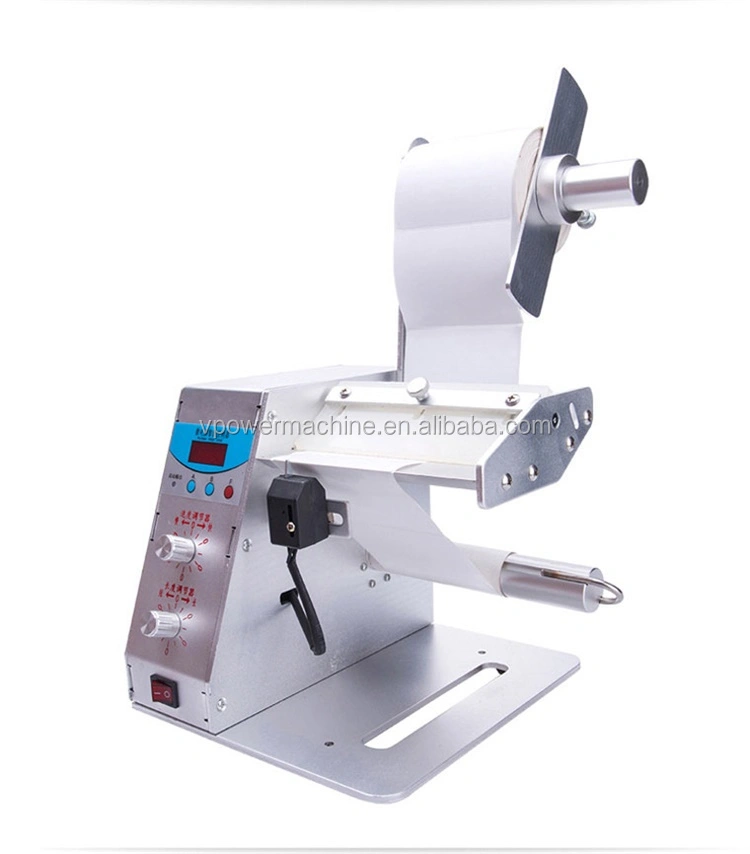

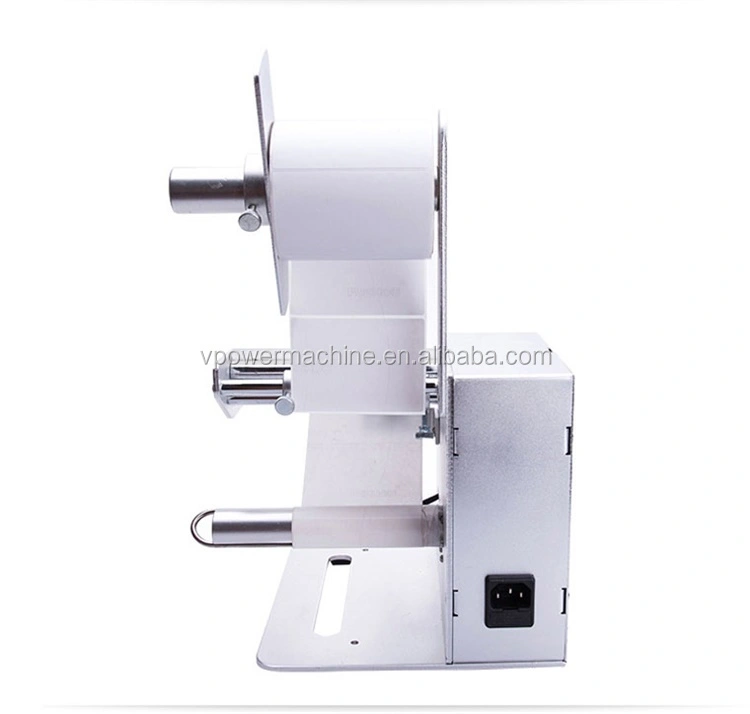

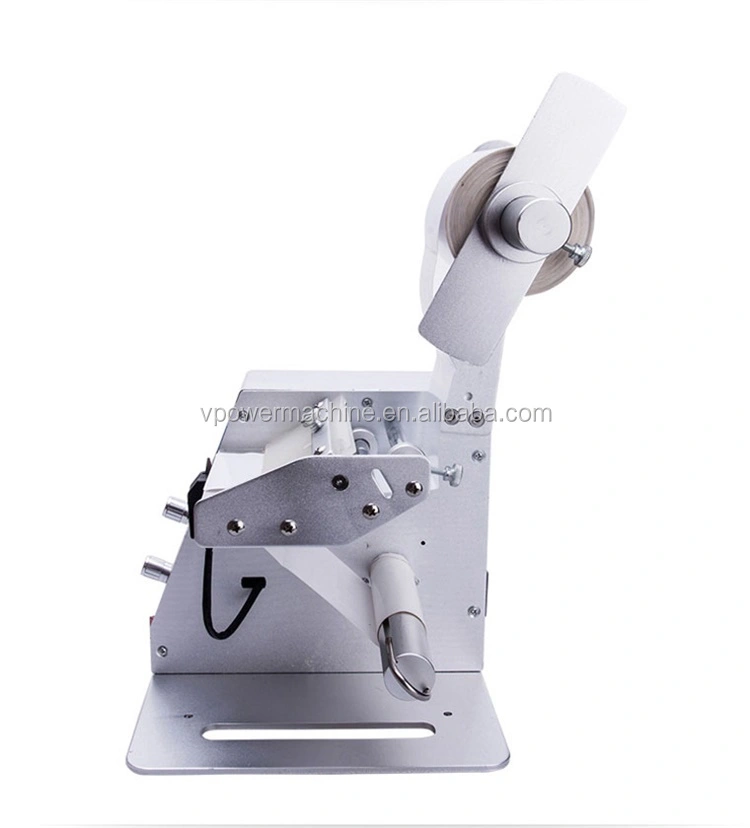

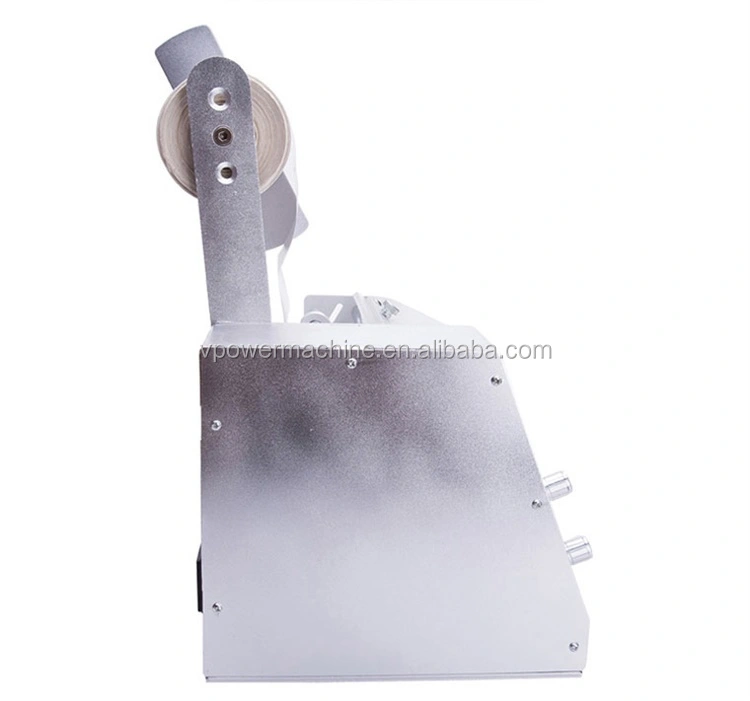

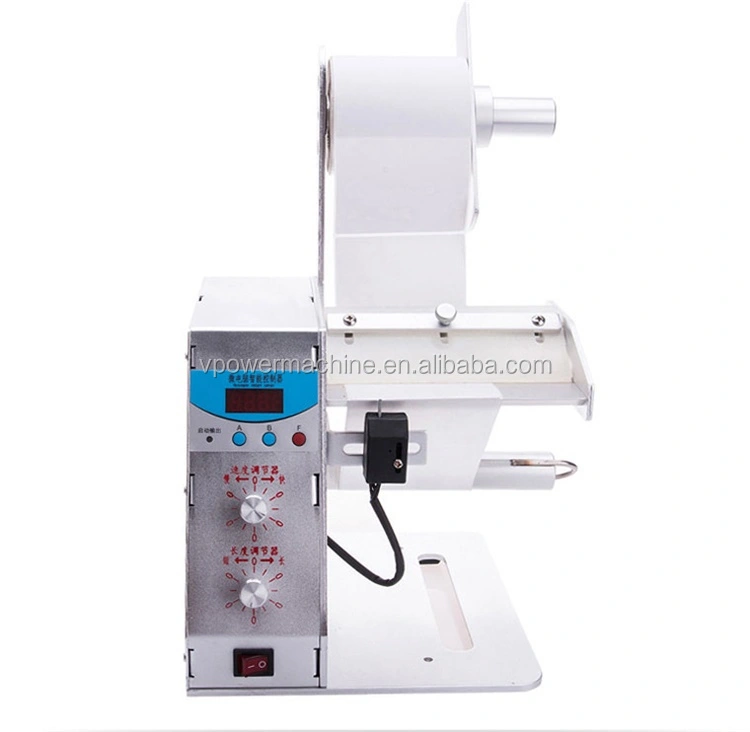

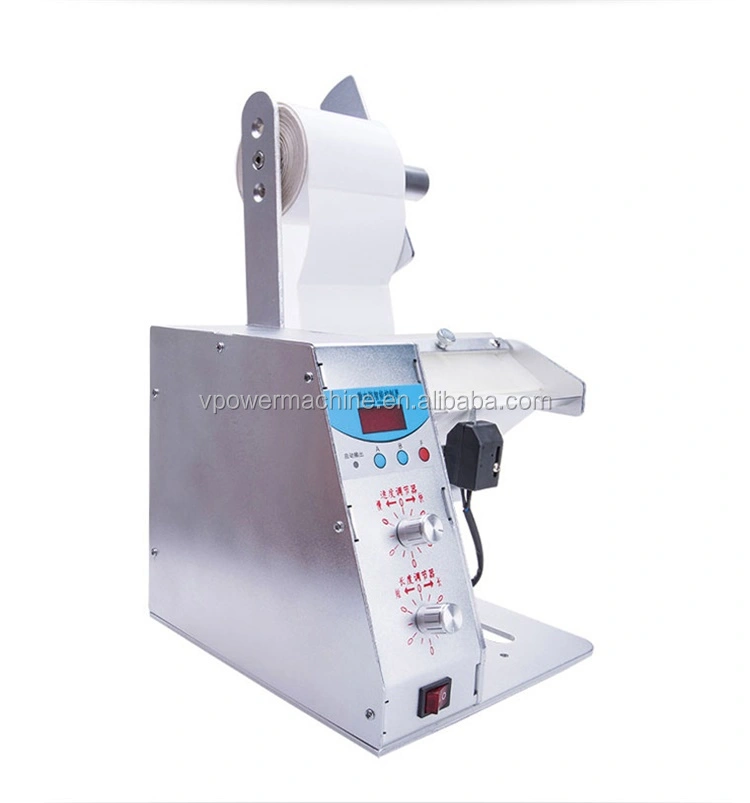

Automatic Desktop Thermal Bar Code sticker Label peeling machine,Label separator, Label Rewinder

Automatic Label peeling machine, factory production, quality assurance! Use it to automatically peel barcode printed labels, effort and time, it is definitely a good helper for your work! For enterprises to solve the troubles manual removal of the label, saving labor costs thousands of dollars per month. Small investment big return!

The basic purposes:
Automatic release of the label, after peeling labels are drawn, the next label is automatically peeled, increase worker efficiency label access, one-time release multi-row tabs.

Scope:
Applicable Label: Label, sticker film, electronic monitoring code, barcode and so on;
Applicable products: all require a label or film products;
By Industry: Widely used in food, toys, daily chemical, electronics, pharmaceutical, metal, plastic, printing and other industries;
Application examples: toy line labeling, labeling on food packaging lines, electronic products pipeline labeling.

Features:
1, independent traction mechanism to reduce direct traction motor vibration, extending motor life
2, labeling peel smooth, stripped tag flat, do not wrinkle, workers take standard convenient;
3, easy to use, easy maintenance, control instructions, can operate independently;
4, the traction force sufficient to release one or more rows disposable tag;
5, with tag count function, a standard length adjustment function;
6, transmission parts parcels, solid and reliable electrical installation, less an exception occurs, use, safer operation, simple maintenance;
7, compact, small footprint, easy movement, and placement of the device can be inserted in a pipeline or a flexible station place;
8, equipment main material of stainless steel and aluminum paint, the overall structure of a solid, nice;

Instructions:

1, the label material mounted on the shaft and the winding according to the instructions Legend;
2. Pull the backing paper is wound on the reel, with the pressure paper clip caught;
3. Adjust the paper stop ring so that the label fixed position;
4, the length of the knob and speed knob are adjusted to zero;
5, open at the beginning of the power, speed adjustment knob until the target speed appropriate;
6, adjust the length knob until the label stripping out the appropriate length;
7, it can start work on the counter is cleared.
8, the core works: sensors to detect labels, control traction motor is stopped; when the label is removed, the label is not detected, the control traction motor is rotated until the next label is peeled to a predetermined position after stopping, so the cycle; Artificial take Tag -> next label is automatically peeled to a predetermined position (the device automatically).

Advantages:
1, the electronic control system: automatic peeling labels smooth, wrinkle;
2, remove the first label, the second label is automatically fed, small labels can be multi-row side by side, once stripped carry out.
3, simple operation, more than one machine can use, efficiency doubled, the entire interval or continuous roll or bar code can be applied;
4, automatic counting 0-999999, convenience yield management automation;
5. Label Type: Self-adhesive labels, barcodes, security, laser, packaging labels;
6. Applicable industries: electronics manufacturing industry, chemical industry, food processing industry, the logistics industries.

Parameters:
Model:                                                   1150D
Label length:                                          3mm-150mm
Label width:                                           4mm-140mm
Label roll inner diameter:                       25/50mm/75mm
Label roll out diameter:                          ≤250mm
Separator speed:                                   1-8m/min
Voltage :                                                 AC 220V 30W
Machine size:                                         210*210*220mm
Net weight:                                             4kg

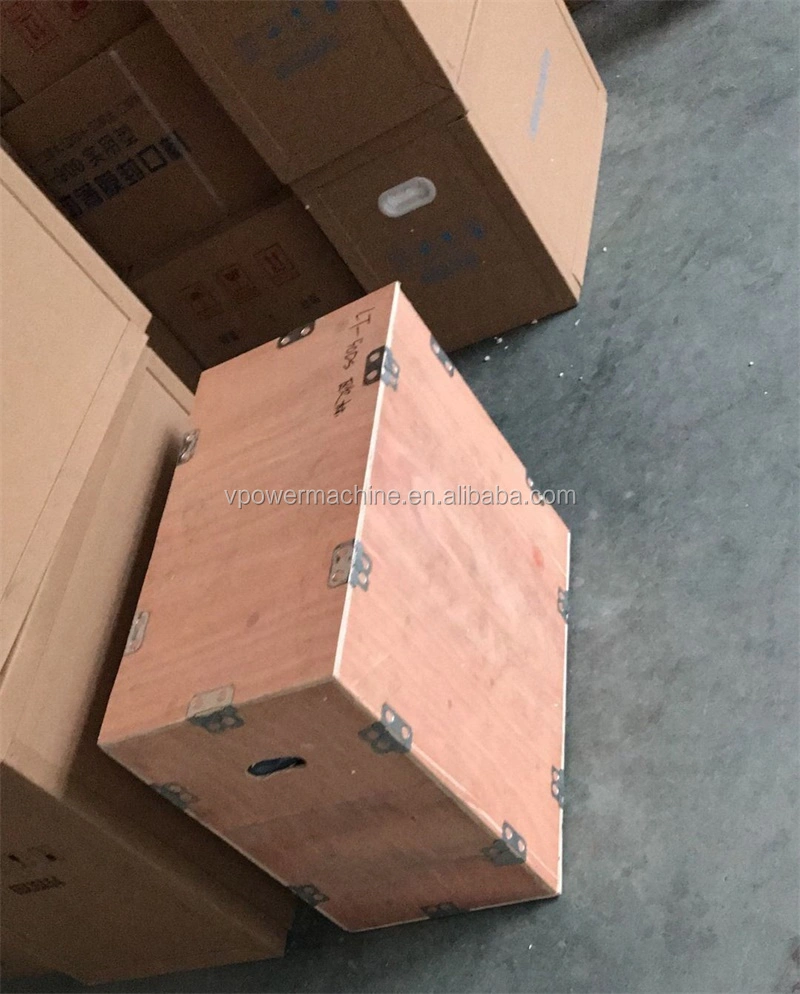

Package: Special Export Plywood Case Packing

Warranty: One year from the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by the un-properly operation, then the Seller would offer the new parts for free.
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
Documents: We can provide Telex release bill of loading or Original Bill of loading, Certificate of the original. Other documents can be provided according to your requirement.

 About after sell service of our machinery
Usually, machine guarantee time is about 1 year. Within guarantee time. Machine breaking caused by the machine itself design defect, we are responsible for it. We can provide free charge breaking part. If machine breaking caused by the human factor, the user need take responsibility for it, we will provide technical support.

About goods shipping of our machinery
We have long time working shipping forwarder. We can do our best to send the machine to your port safe and sound. If you need, we can help you do customs clearance.

About payment term of our machinery
Currently, in order to protect you and our rights. Both us in safe, hope we can do business in a safe way.
L/C(>20000USD),Western Union,T/T(Bank transfer),Paypal,Alibaba
which one are you want, we can discuss it.

About online Service of our machinery
24 hours online to solve any problem. Your email will be replied within 12 hours. Your satisfaction is our pursuit. Sincerely hope our cooperation.

Training:
1. We offer machines training system, the customer can choose training in our factory or in customer workshop. The normal training days are 3-5 days.
2. We offer operation manual to the customer.
3. We offer training video and machine operation video to the customer.
4. We offer remote control service if the customer does not know how to operate and use the machine.

Installation:
We will dispatch engineers to carry out installation and debug of the equipment in buyer's place if requested. The cost for International Double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work.

Warranty:
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials. The machine will be guaranteed in one year, in the guaranteed year, any spare parts are broken due to supplier’s quality issue, the spare parts will be supplied free for the customer, customer needs to pay the freight cost if the parcel weight more than 500gram.

Business Philosophy
Quality is our life
Good cooperation starts from trust

Scope of Business
Our company is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are soap machine, packing machine, labeling machine, capping machine, sealing machine, wrapping machine, vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel mixing tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.

Q: Are you factory or trading company?
A: We are factory focus on designing, manufacturing, assembling, installing and debugging various types of cosmetic machinery such as filling machines, capping machines, labeling machines, soap machines, sealing machines, packing machine and printing machines etc since 2004.

Q: Can you send a video showing how your machine works?
A: Certainly, we have made all our machine's video.

Q: Do you make a test before shipment?
A: We always test machine fully and make sure it works smoothly before shipment.

Q: What is the term of payment and trade terms?
A: We accept T/T, Western Union, MoneyGram, Alibaba Trade Assurance payments.
Trade Term : EXW,FOB,CIF,CNF.

Q: What’s the MOQ and warranty?
A: There is no MOQ, welcome to order, we promise 12-month warranty.

Q: What kind of package for shipping?
A: Use the basic stretch film wrap around the whole machine, and packed with the exported wooden case, also can be according to your requirements.
