VP Detergent Shampoo Making Liquid Soap Production Line Lotion Making Machine Cosmetic Mixing Tank
m1000
Material Processed: Chemicals, Food
Weight: 500 KG
Place of Origin: Guangdong, China
Power: 27 kW
Warranty: 1 Year
Key Selling Points: High Safety Level
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Range of Spindle Speed: 0 - 60 r.p.m
Max. Loading Capacity: 5000L or customized
Material: SUS304L, SUS316L
Product Type: Cosmetic,soap,shampoo,cream,lotion
Application: Liquid
Brand Name: VP
Voltage: 380V/50HZ
Dimension(L*W*H): Customized

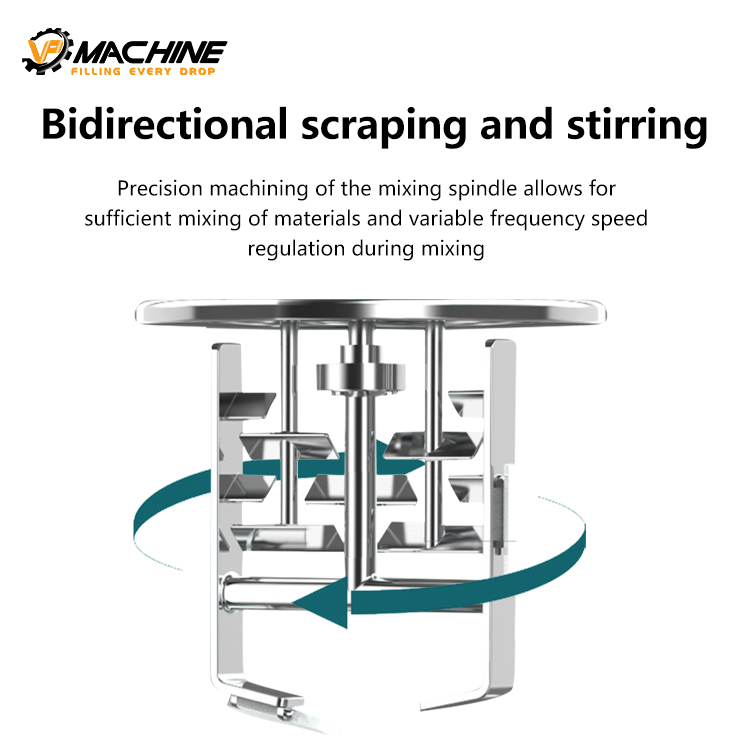

Upper one-way stirring: Wall Scraper Mixer

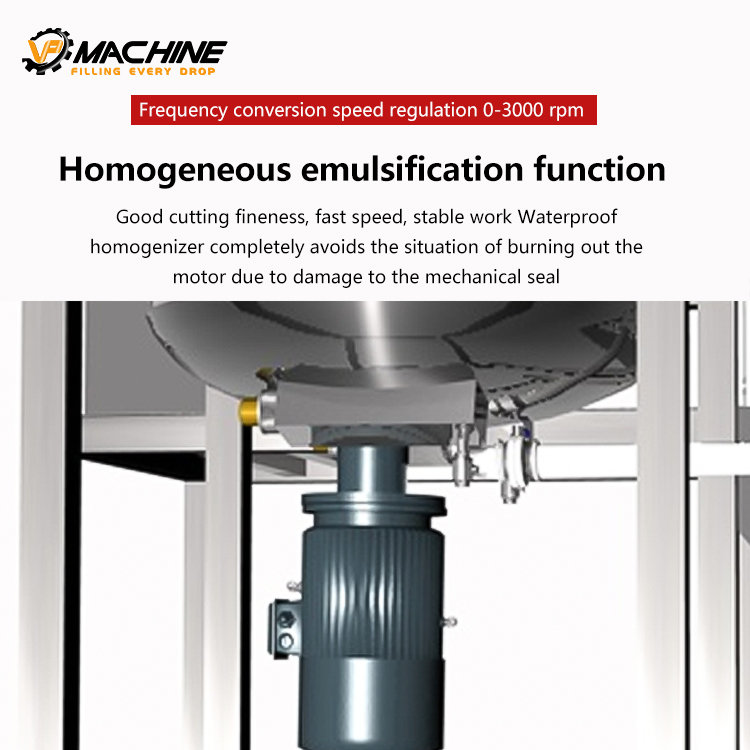

Bottoms: High speed shear homogenization
Motor: SIMENS
Application scope: Liquid Washing Products
Capacity: 100-5000L
Certificate: CE ISO
Homogenization speed: 0-3000rpm
Heating way: Electric or steam heating
Weight: 500 KG
Place of Origin: Guangdong, China
Power: 27 kW
Warranty: 1 Year
Key Selling Points: High Safety Level
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Range of Spindle Speed: 0 - 60 r.p.m
Max. Loading Capacity: 5000L or customized
Material: SUS304L, SUS316L
Product Type: Cosmetic,soap,shampoo,cream,lotion
Application: Liquid
Brand Name: VP
Voltage: 380V/50HZ
Dimension(L*W*H): Customized
Upper one-way stirring: Wall Scraper Mixer
Bottoms: High speed shear homogenization
Motor: SIMENS
Application scope: Liquid Washing Products
Capacity: 100-5000L
Certificate: CE ISO
Homogenization speed: 0-3000rpm
Heating way: Electric or steam heating
minimum order
1 set
Supply Ability
1000set / Month
Country of Origin
China
Stock Time
25Day
Quantity:
Detergent Soap Hair Shampoo blending Making Machine
1. The parts in contact with the raw materials are designed by food grade 304/316 stainless steel. 2. The barrel is made of stainless steel, double-layered with oil, and the volume is 100L.
3. Filling with servo motor, changing the filling amount (0.5-18.0ml) by adjusting the data in the man-machine interface; servo motor lifting mold, changing the lifting height (mm) by adjusting the data in the man-machine interface
4. PLC interface control, more user-friendly, filling volume, and filling speed is set in the PLC
5. Independent heating system control
Technical parameter :
1. The machine can be configured with heating, stirring, emulsifying, homogenizing, and vacuuming functions. The barrel is heated by means of compartment heating to increase the heating area of the raw material and effectively control the heating temperature of the raw material.
1. The machine can be configured with heating, stirring, emulsifying, homogenizing, and vacuuming functions. The barrel is heated by means of compartment heating to increase the heating area of the raw material and effectively control the heating temperature of the raw material.
2. The speed control motor can effectively control the stirring speed.
3. Option Vacuum design to avoid bubble formation during work
4. Option With venting holes to avoid gas explosion
5. Easy to clean, high efficiency, wide application range, etc.
| Model | Working Volume | Mixing Power | Mixing Speed | Homogenizing Power | Homogenizing Speed | Heating |
|---|---|---|---|---|---|---|
| VP-M5 | 5L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M10 | 10L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M15 | 15L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M30 | 30L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M50 | 50L | 0.75 kw | 0-63 rpm | 0 | 0 | Electric heating |
| VP-M100 | 100L | 1.5 KW | 0-63 rpm | 4 kw | 0-3550 rpm | Electric or steam heating |
| VP-M200 | 200L | 2.2 KW | 0-63 rpm | 5.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M300 | 300L | 3 KW | 0-63 rpm | 7.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M500 | 500L | 4 KW | 0-63 rpm | 11 kw | 0-3550 rpm | Electric or steam heating |
| VP-M1000 | 1000L | 5.5 KW | 0-63 rpm | 15 kw | 0-3550 rpm | Electric or steam heating |
| VP-M2000 | 2000L | 5.5 KW | 0-63 rpm | 18.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M3000 | 3000L | 11 KW | 0-63 rpm | 22 kw | 0-3550 rpm | Electric or steam heating |
| VP-M5000 | 5000L | 11 KW | 0-63 rpm | 27 kw | 0-3550 rpm | Electric or steam heating |
| VP-M**** | Customized | |||||
