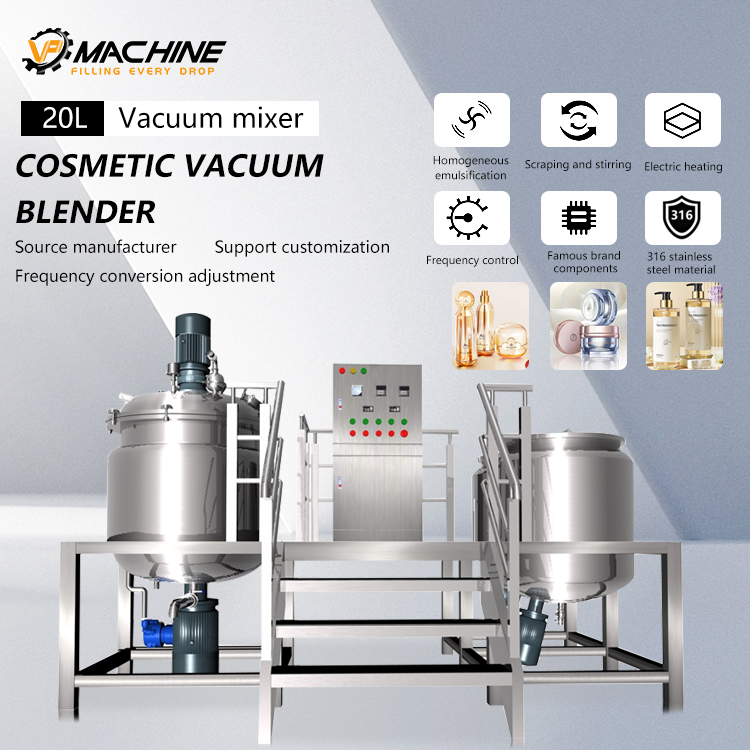

VP shampoo make machine vacuum homogenizer mixer double jacketed cosmetic mixing tank with agitator

vm200-1

Barrel Volume: 200L
Max. Loading Volume: 240 L
Mixer Type: Paddle
Material Processed: Chemicals, Food
Weight: 180 KG
Place of Origin: Guangdong, China
Power: 2.2 kW
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Motor, Gear, Gearbox, Bearing, Engine
Range of Spindle Speed: 0 - 60 r.p.m
Max. Loading Capacity: 5000L or customized
Material: SUS316L
Product Type: Cosmetic,soap,shampoo,lotion,cream etc
Application: Liquid
Brand Name: VP
Voltage: 380V/50HZ
Dimension(L*W*H): 2800*2600*2200mm
Mixer Type: Homogenizer
Application: Liquid Washing Products
Function: Mixing Raw Material
Upper one-way stirring: Wall Scraper Mixer

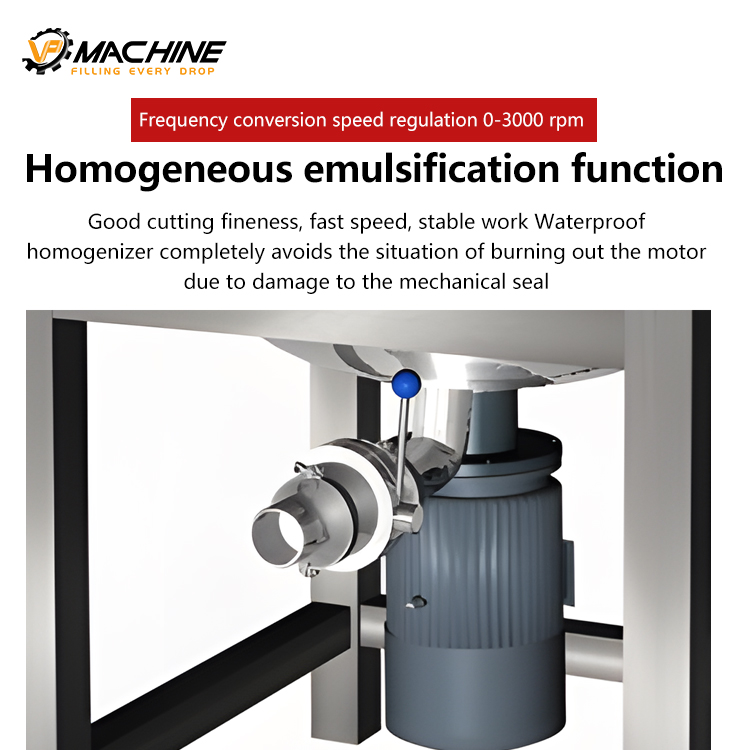

Bottoms: High speed shear homogenization
Motor: SIMENS
Capacity: 200-5000L
Certificate: CE ISO
Heating way: Electric or steam heating

minimum order

1 set

Supply Ability

1000set / Month

Country of Origin

China

Stock Time

30Day

Quantity:

Contact Now

add to cart

Buy Now

Detergent Soap Hair Shampoo blending Making Machine

1. The parts in contact with the raw materials are designed by food grade 304/316 stainless steel.

2. The barrel is made of stainless steel, double-layered with oil, and the volume is 100L.

3. Filling with servo motor, changing the filling amount (0.5-18.0ml) by adjusting the data in the man-machine interface; servo motor lifting mold, changing the lifting height (mm) by adjusting the data in the man-machine interface

4. PLC interface control, more user-friendly, filling volume, and filling speed is set in the PLC

5. Independent heating system control

Technical parameter :

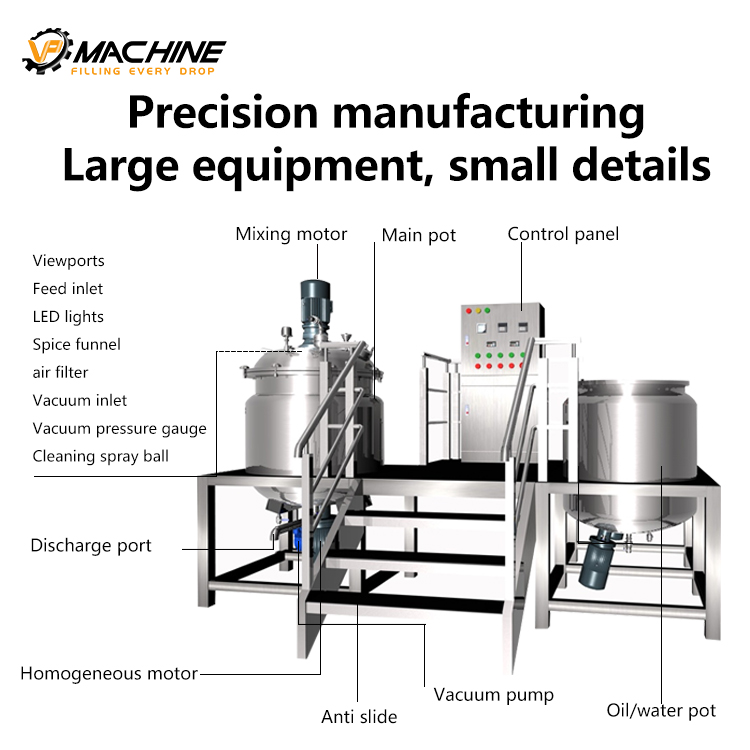

1. The machine can be configured with heating, stirring, emulsifying, homogenizing, and vacuuming functions. The barrel is heated by means of compartment heating to increase the heating area of the raw material and effectively control the heating temperature of the raw material.

2. The speed control motor can effectively control the stirring speed.

3. Option Vacuum design to avoid bubble formation during work

4. Option With venting holes to avoid gas explosion

5. Easy to clean, high efficiency, wide application range, etc.

Model	Working Volume	Mixing Power	Mixing Speed	Homogenizing Power	Homogenizing Speed	Heating
VP-M5	5L	0.75 kw	0-40 rpm	0	0	Electric heating
VP-M10	10L	0.75 kw	0-40 rpm	0	0	Electric heating
VP-M15	15L	0.75 kw	0-40 rpm	0	0	Electric heating
VP-M30	30L	0.75 kw	0-40 rpm	0	0	Electric heating
VP-M50	50L	0.75 kw	0-63 rpm	0	0	Electric heating
VP-M100	100L	1.5 KW	0-63 rpm	4 kw	0-3550 rpm	Electric or steam heating
VP-M200	200L	2.2 KW	0-63 rpm	5.5 kw	0-3550 rpm	Electric or steam heating
VP-M300	300L	3 KW	0-63 rpm	7.5 kw	0-3550 rpm	Electric or steam heating
VP-M500	500L	4 KW	0-63 rpm	11 kw	0-3550 rpm	Electric or steam heating
VP-M1000	1000L	5.5 KW	0-63 rpm	15 kw	0-3550 rpm	Electric or steam heating
VP-M2000	2000L	5.5 KW	0-63 rpm	18.5 kw	0-3550 rpm	Electric or steam heating
VP-M3000	3000L	11 KW	0-63 rpm	22 kw	0-3550 rpm	Electric or steam heating
VP-M5000	5000L	11 KW	0-63 rpm	27 kw	0-3550 rpm	Electric or steam heating
VP-M****	Customized
