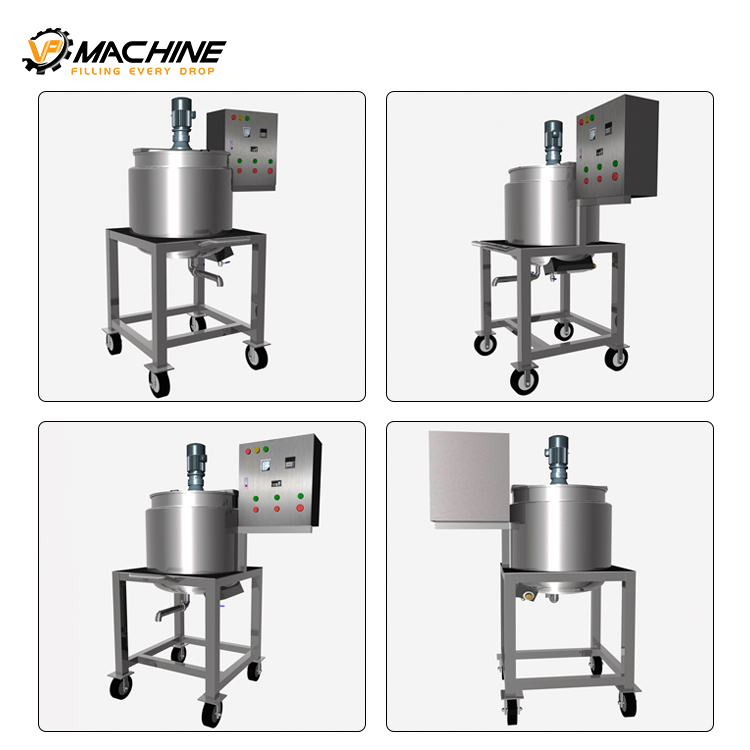

VP 50L Dishwashing Liquid Laundry Detergent Small Stainless Steel 304 Single Layer Flip Top Mixing Tank
m50
Mixer Type: Paddle
Material Processed: Chemicals, Food
Weight: 120 KG
Place of Origin: Guangdong, China
Power: 0.55 kW
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Motor, Gear, Gearbox, Bearing, Engine
Range of Spindle Speed: 0 - 60 r.p.m
Max. Loading Capacity: 5000L or customized
Material: SUS316L
Product Type: Cosmetic,liquid,cream,lotion,shampoo,soap etc
Application: Liquid
Brand Name: VP
Voltage: 380V
Dimension(L*W*H) 100*100*160mm
Function: Stirring
Application scope: Chemical,Cosmetic
Advantage: Easy Control
Motor: SIMENS
Heating method: Electric or steam
Material Processed: Chemicals, Food
Weight: 120 KG
Place of Origin: Guangdong, China
Power: 0.55 kW
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Motor, Gear, Gearbox, Bearing, Engine
Range of Spindle Speed: 0 - 60 r.p.m
Max. Loading Capacity: 5000L or customized
Material: SUS316L
Product Type: Cosmetic,liquid,cream,lotion,shampoo,soap etc
Application: Liquid
Brand Name: VP
Voltage: 380V
Dimension(L*W*H) 100*100*160mm
Function: Stirring
Application scope: Chemical,Cosmetic
Advantage: Easy Control
Motor: SIMENS
Heating method: Electric or steam
minimum order
1 set
Supply Ability
1000set / Month
Country of Origin
China
Stock Time
20Day
Quantity:
Detergent Soap Hair Shampoo blending Making Machine
1. The parts in contact with the raw materials are designed by food grade 304/316 stainless steel. 2. The barrel is made of stainless steel, double-layered with oil, and the volume is 100L.
3. Filling with servo motor, changing the filling amount (0.5-18.0ml) by adjusting the data in the man-machine interface; servo motor lifting mold, changing the lifting height (mm) by adjusting the data in the man-machine interface
4. PLC interface control, more user-friendly, filling volume, and filling speed is set in the PLC
5. Independent heating system control
Technical parameter :
1. The machine can be configured with heating, stirring, emulsifying, homogenizing, and vacuuming functions. The barrel is heated by means of compartment heating to increase the heating area of the raw material and effectively control the heating temperature of the raw material.
1. The machine can be configured with heating, stirring, emulsifying, homogenizing, and vacuuming functions. The barrel is heated by means of compartment heating to increase the heating area of the raw material and effectively control the heating temperature of the raw material.
2. The speed control motor can effectively control the stirring speed.
3. Option Vacuum design to avoid bubble formation during work
4. Option With venting holes to avoid gas explosion
5. Easy to clean, high efficiency, wide application range, etc.
| Model | Working Volume | Mixing Power | Mixing Speed | Homogenizing Power | Homogenizing Speed | Heating |
|---|---|---|---|---|---|---|
| VP-M5 | 5L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M10 | 10L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M15 | 15L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M30 | 30L | 0.75 kw | 0-40 rpm | 0 | 0 | Electric heating |
| VP-M50 | 50L | 0.75 kw | 0-63 rpm | 0 | 0 | Electric heating |
| VP-M100 | 100L | 1.5 KW | 0-63 rpm | 4 kw | 0-3550 rpm | Electric or steam heating |
| VP-M200 | 200L | 2.2 KW | 0-63 rpm | 5.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M300 | 300L | 3 KW | 0-63 rpm | 7.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M500 | 500L | 4 KW | 0-63 rpm | 11 kw | 0-3550 rpm | Electric or steam heating |
| VP-M1000 | 1000L | 5.5 KW | 0-63 rpm | 15 kw | 0-3550 rpm | Electric or steam heating |
| VP-M2000 | 2000L | 5.5 KW | 0-63 rpm | 18.5 kw | 0-3550 rpm | Electric or steam heating |
| VP-M3000 | 3000L | 11 KW | 0-63 rpm | 22 kw | 0-3550 rpm | Electric or steam heating |
| VP-M5000 | 5000L | 11 KW | 0-63 rpm | 27 kw | 0-3550 rpm | Electric or steam heating |
| VP-M**** | Customized | |||||
