VP 100L-500L Stainless steel liquid mixing tank with agitator electric heating mixing vessel stainless steel jacketed mixing tank

vm500

Barrel Volume: 500L
Max. Loading Volume: 540 L
Mixer Type: Paddle
Material Processed: Chemicals, Food
Weight: 380 KG
Place of Origin: Guangdong, China
Power: 4 kW
Warranty:1 Year
Key Selling Points: Competitive Price
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine
Range of Spindle Speed: 0 - 60 r.p.m
Max. Loading Capacity: 5000L or customized
Material: SUS316L
Product Type: Cosmetic,paint,soap,shampoo,cream,lotion etc
Application: Liquid
Brand Name: VP
Voltage: 380V/50HZ
Dimension: 3300*3100*2700mm
Mixer Type: Homogenizer
Application: Liquid Washing Products
Function: Mixing Raw Material

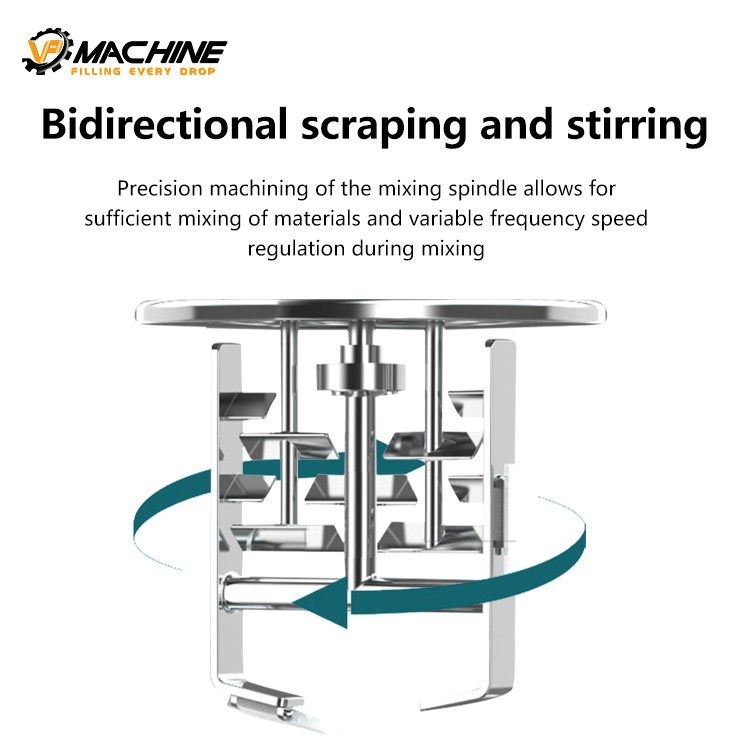

Upper one-way stirring: Wall Scraper Mixer

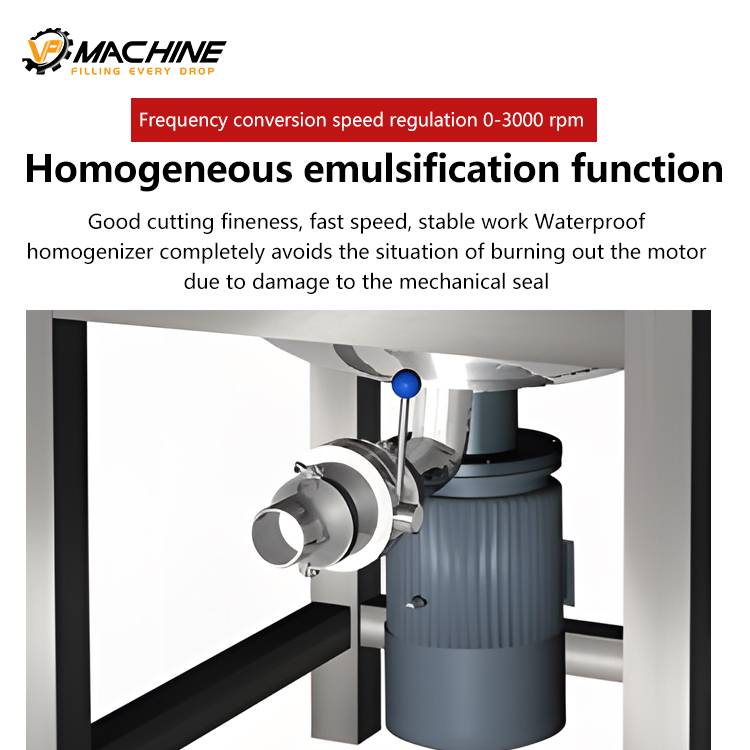

Bottoms: High speed shear homogenization
Motor: SIMENS
Capacity: 200-5000L
Certificate: CE ISO
Heating way: Electric or steam heating

minimum order

1 set

Supply Ability

10000set / Month

Country of Origin

China

Stock Time

20Day

Quantity:

Contact Now

add to cart

Buy Now

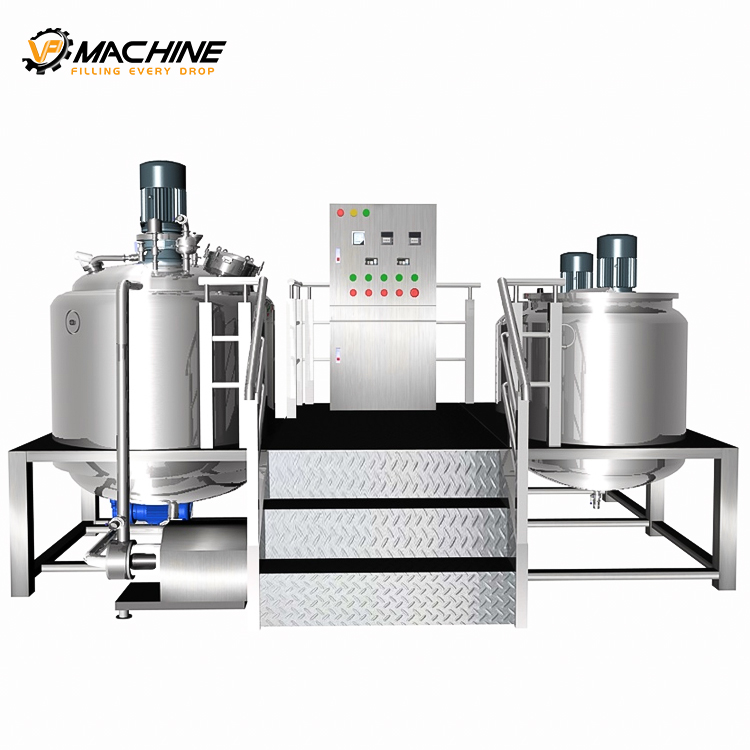

Vacuum Homogenizing Mixer

Vacuum emulsifying mixer machine consist of Main emulsifying tank, Vacuum system, Fixed type vacuum system (OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics/chemical/food products.

Application:

Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo

Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine.
Chemical Industry: Polyester, Synthetic fiber Paint

Industry: Paints, Synthetic resin paint

Others: Color, Wax, Shoe cream, Coating liquid

Model	Working Volume	Mixing Power	Mixing Speed	Homogenizing Power	Homogenizing Speed	Heating
VM50	50L	0.75 KW	0-60 rmp	1.5 kw	0-3000rpm	Electric heating
VM100	100L	1.5 kw	0-60 rmp	3 kw	0-3000rpm	Electric heating
VM200	200L	2.2 kw	0-60 rmp	4 kw	At room temperature -0.05Mpa	Electric heating
VM300	300L	3 KW	0-60 rmp	7.5 kw	0-3000rpm	Electric or steam heating
VM500	500L	4 KW	0-60 rmp	2.2 kw	At room temperature -0.05Mpa	Electric or steam heating
VM1000	1000L	5.5 KW	0-60 rmp	4 kw	At room temperature -0.05Mpa	Electric or steam heating
VM2000	2000L	7.5 KW	0-50 rpm	5.5 kw	At room temperature -0.05Mpa	Electric or steam heating
VM3000	3000L	11 KW	0-50 rpm	5.5 kw	At room temperature -0.05Mpa	Electric or steam heating
VM...	Customized
