High-Quality Stainless Steel CH Series Sigma Paddle Horizontal Trough Typed Ribbon Mixer For Soap Dry Powder

• Place of Origin:CN;GUA
• Brand Name:Yuming
• Product Type:Soap
• Mixer Type:Paddle
• Warranty:1 Year
• Application:Powder
• After-sales Service Provided:Engineers available to service machinery overseas
• Condition:New
• Voltage:220V/380V
• Certification:ISO
• Max. Loading Capacity:600 L
• Power:1.5 kw
• Dimension(L*W*H):1200*500*950 mm
• Model Number:CH1000
• Additional Capabilities:Drying
• Name:Mixing Machine
• Product name:powder mixing machine
• Material:SS304
• Function:Mixing Raw Material
• Usage:Cosmetic Industry
• Machine Type:Dispersion Blender Mixer Machine
• Application scope:Chemical Cosmetic
• Heating method:Electric Heating
• Type:Cosmetic Making Machine Homogenizer
• Capacity:50-3000L

High-Quality Stainless Steel CH Series Sigma Paddle Horizontal Trough Typed Ribbon Mixer For Soap Dry Powder

Main Applications of CH series U trough type mixer:

1.For mixing of powders, pastes, and slurries with low and medium viscosity;
2.Mixing vessel volume: 50-1000L;
3.GMP design.
4. Heating jacket can be equipped for steam, hot water or hot oil

Working principle of CH series U trough type mixer:

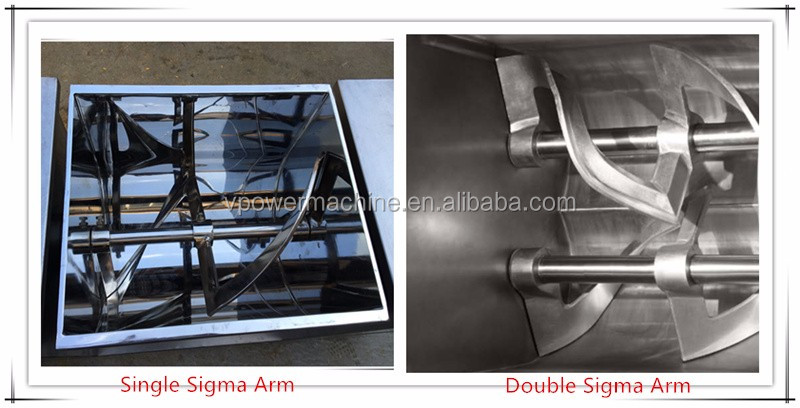

CH series U trough type mixer is widely used for mixing powders, pastes, and slurries with the low and medium viscosity in food, chemical, and pharmaceutical industry. It consists of trough-shaped mixing vessel, single or double Z blade, drives motor, tilts motor and support frame.

Materials (usually powders and liquid ) is gravity fed into the mixing barrel. The rotary single or double Z blades completely stir and blend the materials to achieve uniform mixing. After mixing, incline the mixing vessel for discharging.

Technical advantages of CH series U trough type mixer :

1. Robust, simple and compact design requires minimum maintenance;
2. Made by SUS304 or SUS 316 and mirror polished to meet GMP pharmaceutic sanitary standards;
3. Special drive shaft sealing design can 100% make sure contamination free of product;
4. The gap between sigma blade and mixing vessel inner wall is less than 3mm;
5. High efficient mixing without dead corner
6. Heating jacket can be equipped for steam, hot water or hot oil

Main Feature of CH series U trough type mixer :

1: it is made up of stainless steel

2; meeting ISO9001 and CE certificate

3: U shaped design, can mix liquid, wet raw material, dry powder, granule, etc

4: can add the heating or cooling jacket( as consumer requirement)

5: can match the complete spray system ( as consumer requirement)

6: this mixer design discharging way as bottom discharging

7: can add the frequency changer, adjust the mixing speed( as consumer requirement)

8: Guarantee: 1 year

9; voltage: 220v or 380v or as consumer requirement

10: payment: 30% TT in advance, 70% need to pay us before delivering the goods, or against the copy of BL

11: delivery time: 25 days

Technical Parameters of CH series U trough type mixer:

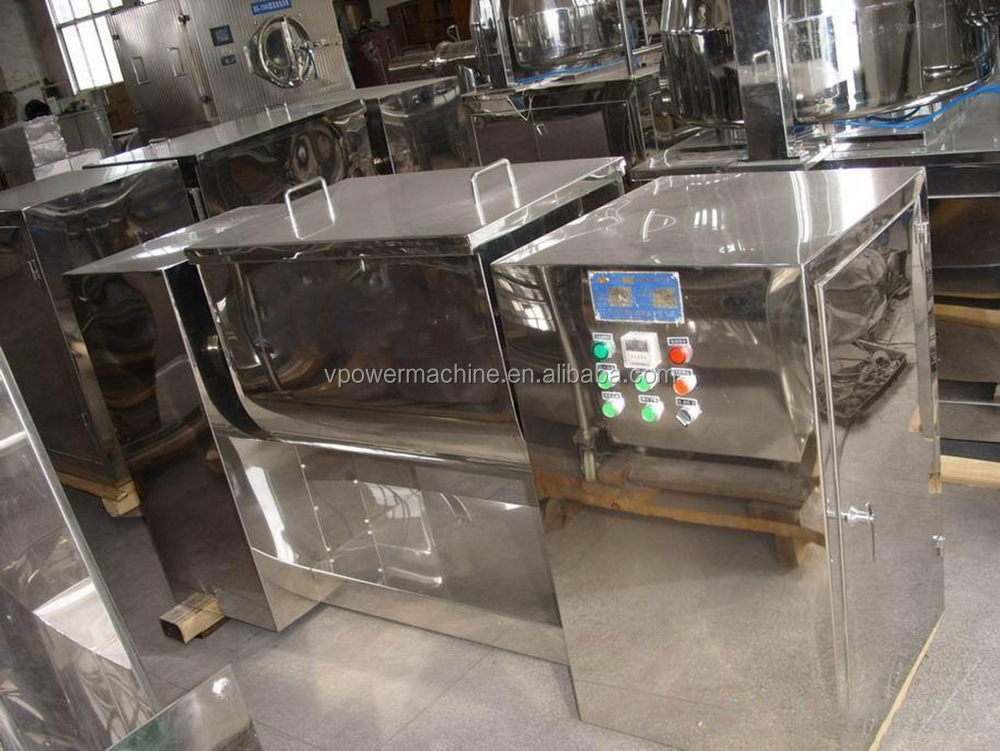

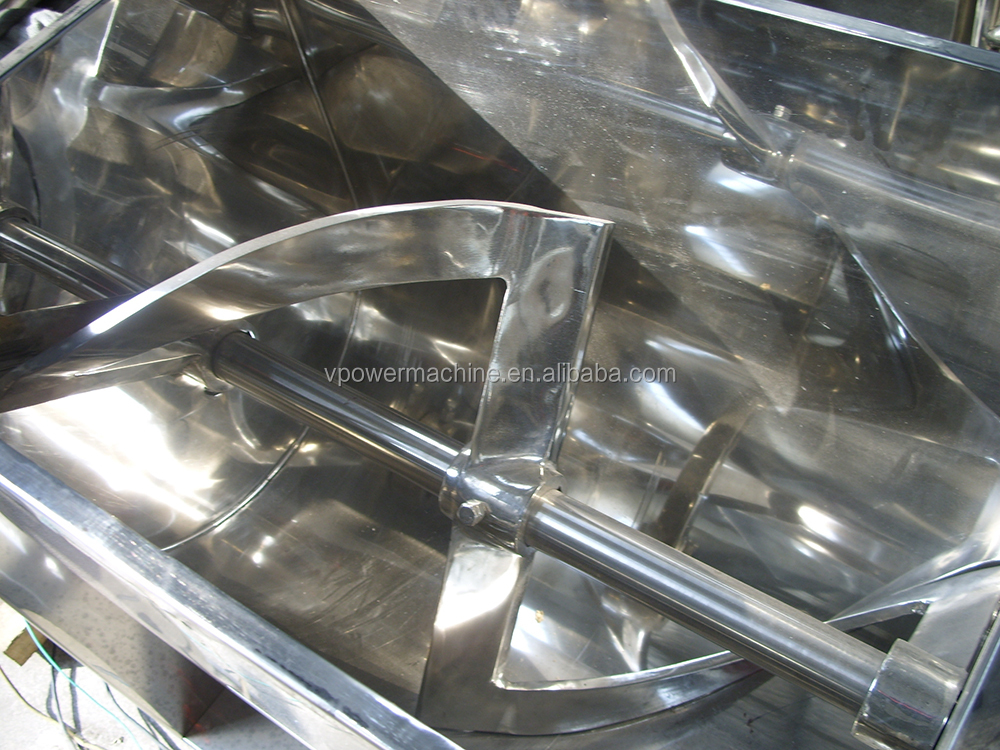

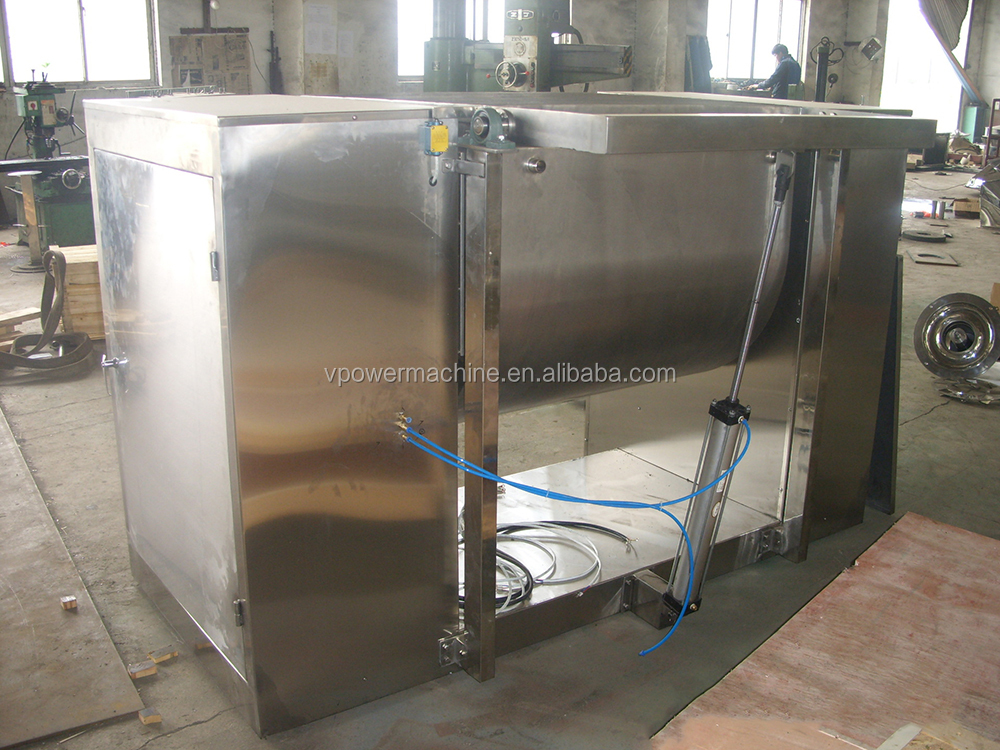

Picturesof CH series U trough type mixer:
