Liquid Filling Machine Manual 5 ml to 50 ml Liquid Bottle Filler Food Grade Drink Water Olive Oil Essential oil A03 No Electric

• Type:Filling Machine
• Place of Origin:CN;GUA
• Power:0
• Brand Name:Yuming
• Condition:New
• Driven Type:manual
• Packaging Material:metal
• Packaging Material:Paper
• Packaging Material:Plastic
• Packaging Material:Wood
• Application:APPAREL
• Application:Beverage
• Application:Chemical
• Application:Commodity
• Application:Food
• Application:MEDICAL
• After-sales Service Provided:Engineers available to service machinery overseas
• Voltage:0
• Certification:CE ISO
• Packaging Type:Bags
• Packaging Type:Barrel
• Packaging Type:Bottles
• Packaging Type:CANS
• Packaging Type:Cartons
• Packaging Type:Pouch
• Packaging Type:Stand-up Pouch
• Dimension(L*W*H):270*270*710 mm
• Automatic Grade:Semi-automatic
• Weight:17 kg
• Model Number:A03
• Name:Manual Liquid Filling Machine
• Product name:Cream filling machine
• Function:Filling
• Usage:Filling Material
• Material:SUS304
• Bottle type:PET Plastic Bottle
• Processing Types:Normal Pressure Filling
• Filling material:Flowing Liquid
• Capacity:20-30 Pcs/Min
• Warranty:One Year

Liquid Filling Machine Manual 5 ml to 50 ml Liquid Bottle Filler Food Grade Drink Water Olive Oil Essential Oil A03 No Electric

Introduction
Our Innovative Newest A03 series manual filling machine adopts a piston type structure, the liquid, paste and other materials for 0-50g quantitative filling. Filling of liquid, liquid food, oil, shampoo, shampoo cream liquid substance, with paste liquid filling machine function. Applicable to the pharmaceutical, cosmetic, food, pesticides and special industries, and also can be used for sealing the hose has the quantitative filling, is the ideal paste liquid filling equipment.

This manual filling machine has been specially designed by our factory for medium or small size enterprises including laboratories, hospitals, and beauty parlors.Its design is compact, efficient, and easy to use.All parts of the machine that touch the material being filled are Made of stainless steel and Polytetrafluoroethylene and meet food grade standards.On average the machine can fill 40 bottles per minute (depending on the operation speed, product density, draw length, and fill speed).the machine is suitable for filling low to high-density liquids (0-10,000 cps).

Stainless steel construction, a rugged rotary valve system, and a completely pneumatic operation design serve to extend service life.The silica gel O-ring system can withstand 392° Fahrenheit heat. Piston feed speed is adjustable and a no-drip option is included.The machine is extremely accurate (+/- 1%) and simple to operate.It is also very easy to clean and maintain thanks to sanitary stainless steel quick disconnect fittings.

The machine has simple and reasonable structure, convenient manual operation, without any energy.With the filling volume regulator knob, quantitative discharging, filling rate and filling speed can be controlled manually.The material contact part uses stainless steel, suitable for use in acidic medium, to meet the food, pharmaceutical production, and health requirements.The machine hopper capacity of 10 kg, the user can be set on the filling capacity.

How To Use

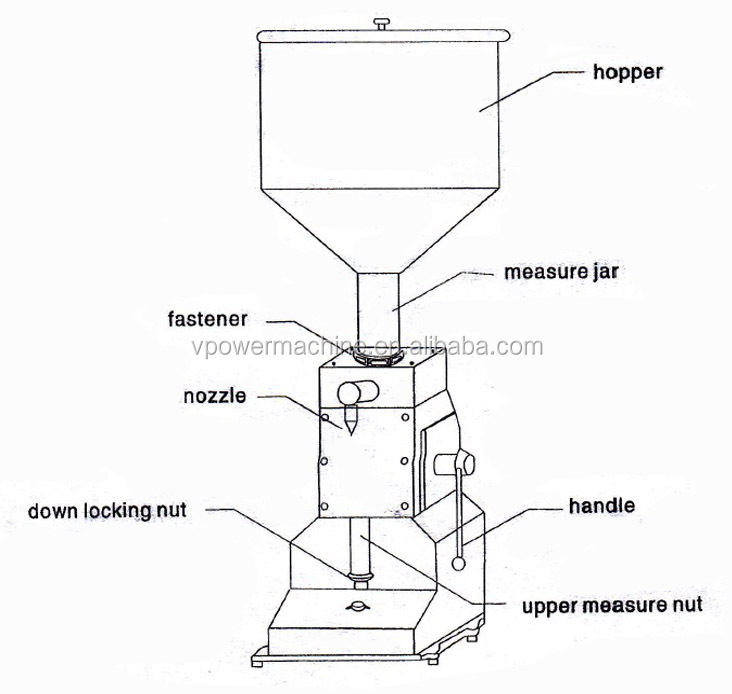

Make the handle up at first, then let the locking nut slip, circumgyrate the measure net CCW to the filling volume, or CW to reduce.Circumgyrate the locking nut close while you get the right dosage.

Features
Suitable to fill low to high-density liquids (0 – 10,000 cps).
All Parts in Contact with Product are Food Grade (SS 304/316).
Stainless Steel Construction.
40 bottles/min (depending on operator speed, product density, draw length, a fill speed, among others).
Rugged Rotary Valve System Design.
Pneumatic Operation.
Silica gel O-ring System (cam bear 200 Celsius degree).
Piston Feed Speed Adjustment.
No-drip Option Included and Installed.
Extremely Accurate (+/- 1%).
Extremely Easy to Clean and Maintain.
Sanitary Stainless Steel Quick Disconnect Fittings.
Extremely Easy to Operate.
Quick Connect/Disconnect Pneumatic Fittings.
Completely Pneumatic, no electric.

Technical
Filling Range: 5-50ml
Capacity of Hopper: 22lbs/10kg
Height Range: 7.87"/200mm
Bottle diameter range: 3-15 mm
Filling material: Cream & shampoo, Cosmetic etc
Filling accuracy: ±1%
Machine size: 270 * 270 * 710 mm
Packing size: 340 * 360 * 790 mm
Net weight: 28.5lbs/13 kg
Gross weight: 37.5lbs/17 kg

Package Content
A03 Manual Filling Machine: 1Pcs
Nozzles: 1Pcs(4mm/8mm)
O-Ring: 5Pcs
Screwdriver: 1Pcs
Guide Manual: 1Pcs

We useFamous brand electrical parts to keep the machine with high quality.

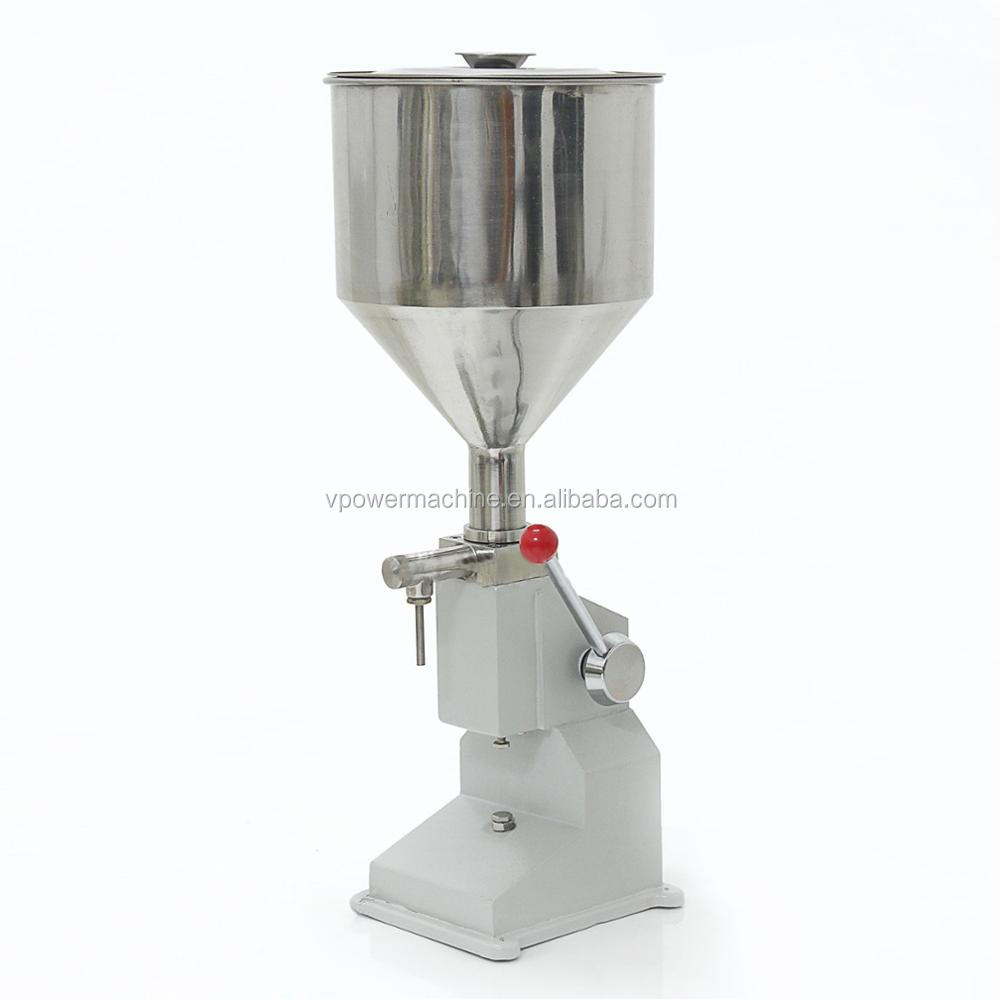

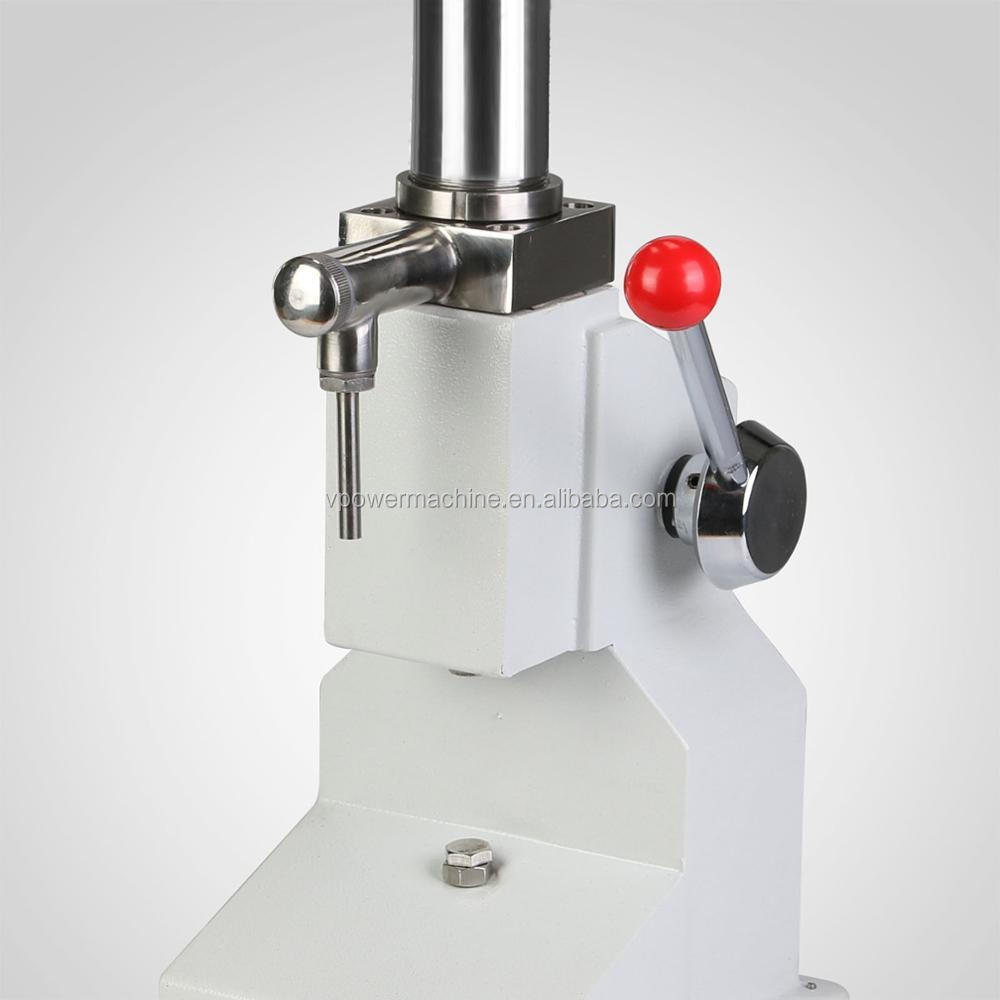

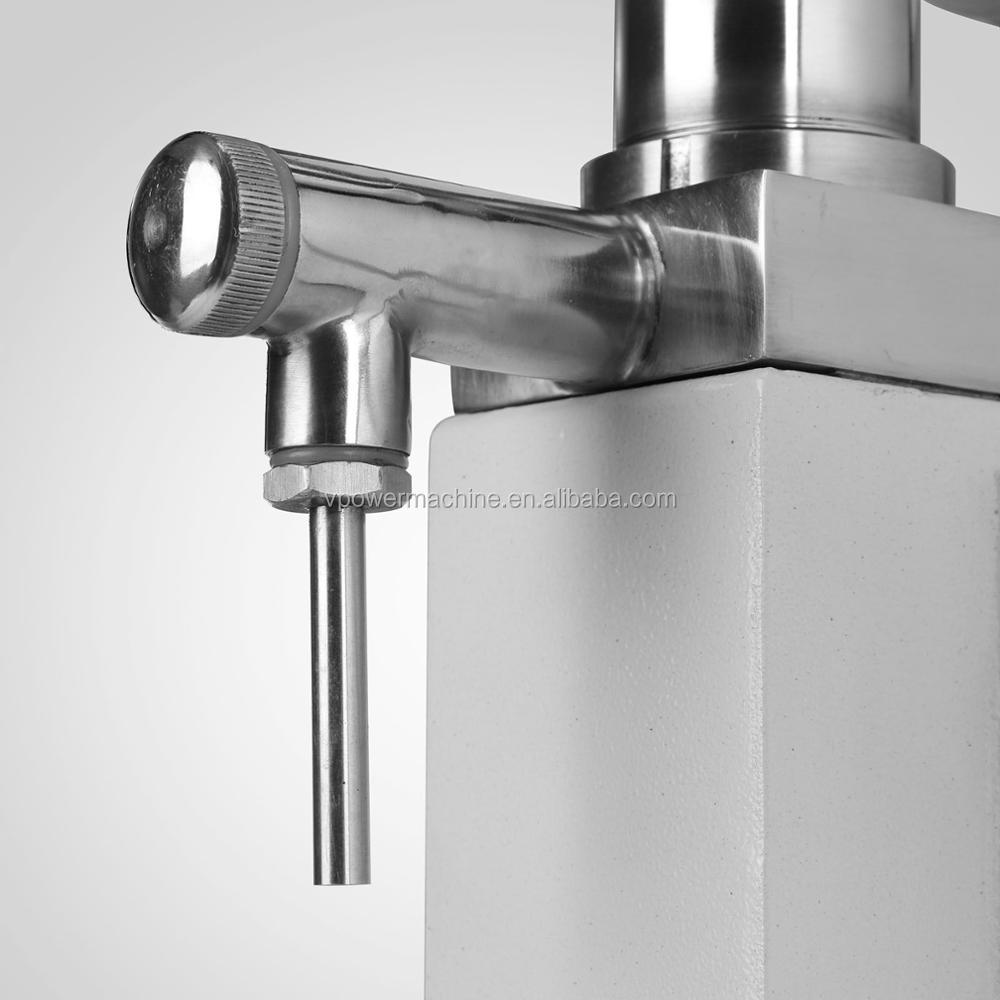

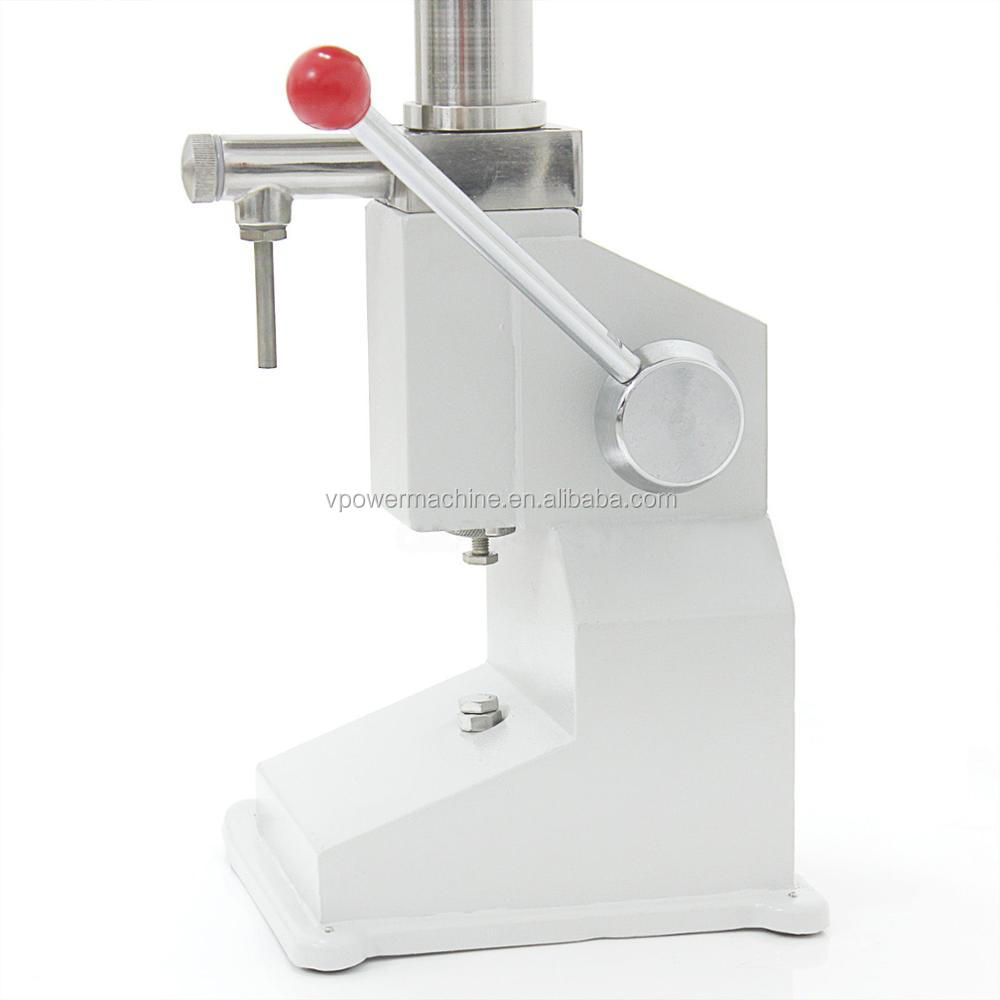

Pictures of Filling Machine:
