automatic mouthwash filling machine

G1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,Juice

G1WY
minimum order
1 set
Supply Ability
1000set / Month
Country of Origin
Guangzhou
Quantity:
Contact Now
add to cart
Buy Now
  • Type:Filling Machine
  • Place of Origin:CN;GUA
  • Power:0.02
  • Brand Name:Yuming
  • Condition:New
  • Driven Type:Pneumatic
  • Packaging Material:metal
  • Packaging Material:Paper
  • Packaging Material:Plastic
  • Packaging Material:Wood
  • Application:APPAREL
  • Application:Beverage
  • Application:Chemical
  • Application:Commodity
  • Application:Food
  • Application:MEDICAL
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Voltage:220V
  • Certification:CE ISO
  • Packaging Type:Bags
  • Packaging Type:Barrel
  • Packaging Type:Bottles
  • Packaging Type:CANS
  • Packaging Type:Cartons
  • Packaging Type:Pouch
  • Packaging Type:Stand-up Pouch
  • Dimension(L*W*H):950*480*450
  • Automatic Grade:Semi-automatic
  • Weight:45 kg
  • Model Number:G1WY
  • Name:Manual Liquid Filling Machine
  • Product name:Cream filling machine
  • Function:Filling
  • Usage:Filling Material
  • Material:SUS304
  • Bottle type:PET Plastic Bottle
  • Air pressure:0.4-0.6 MPA
  • Filling material:Flowing Liquid
  • Capacity:20-30 Pcs/Min
  • Warranty:One Year

G1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink, Essential Oil, Perfume, Mineral Water, Juice

G1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,JuiceG1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,Juice

Application:

Piston type G1WY series liquid filling machine is driven by electricity and air compressor, is suitable for filling good liquidity products, such as water, oil, beverage, juice, drink, oil, shampoo, perfume etc, widely applied to food, commodity, cosmetic, medicine, agriculture etc, it is an ideal quantitative liquid filling equipment for small and medium-sized enterprises.

Advantages:

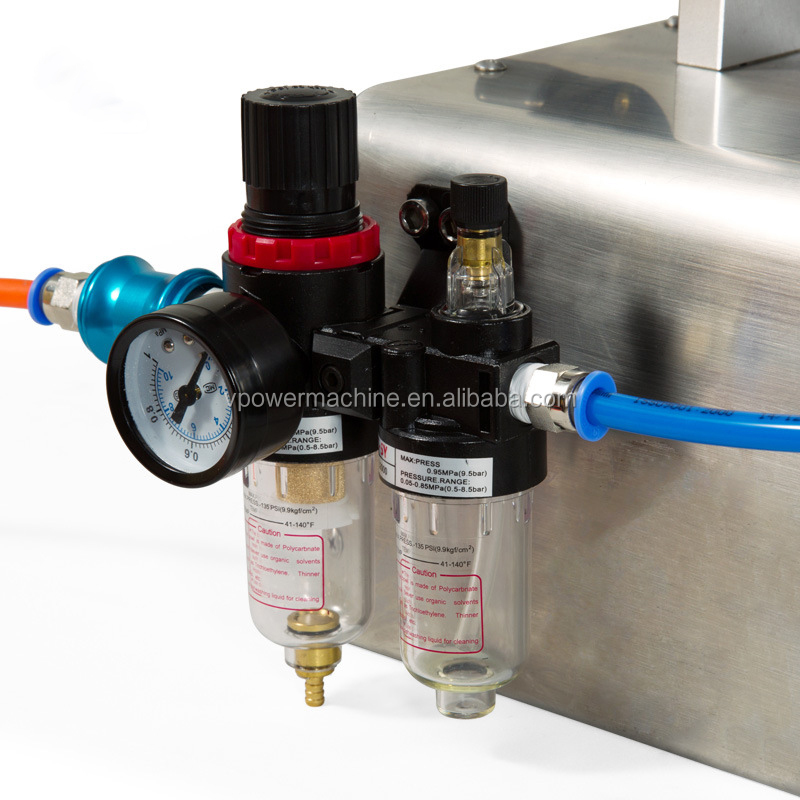

1. Adopts high-end gas pressure meter, the operation is more accurate.

2. Machine dynamic structure section adopts Germany FESTO and Taiwan AirTAC etc pneumatic components, material contact parts are made of 304L stainless steel, meet GMP approval request.
3. Precise check valve, long working life, ensure the filling product can run smoothly.
4. Filling accuracy is high, within filling range, the filling volume and filling speed can be set at your option.

5. Filling heads adopt drip-proof and lifting filling device.

Parameters:

Machine modelG1WY-100G1WY-300G1WY-500G1WY-1000G1WY-2500G1WY-5000
Filling range5-100ml10-300ml50-500ml100-1000ml300-2500ml1000-5000ml
Filling speed15-35 bottles/min
Filling error≤±1%
VoltageAC 220V 50Hz / 110V 60Hz
Air pressure1.5Hp air compressor ; 0.4-0.6mpa air pressure
Dimension(cm)86*29*3086*30*3089*33*3292*34*3294*35*3895*48*45
Net weight31kg32kg33kg35kg42kg50kg

We useFamous brand electrical parts to keep the machine with high quality.

G1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,Juice

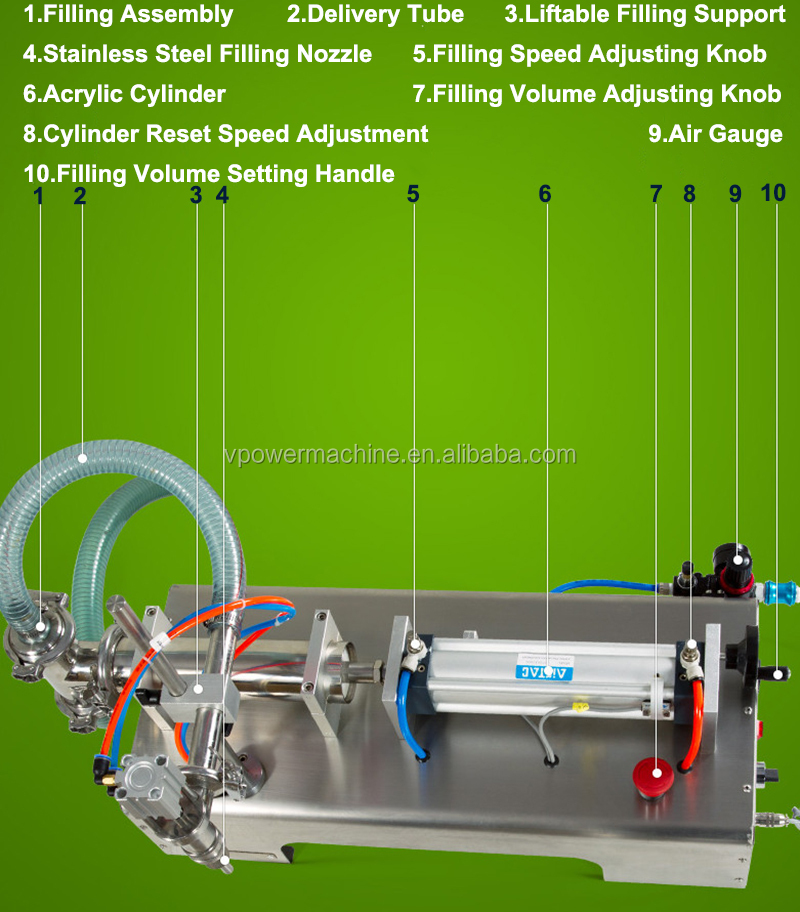

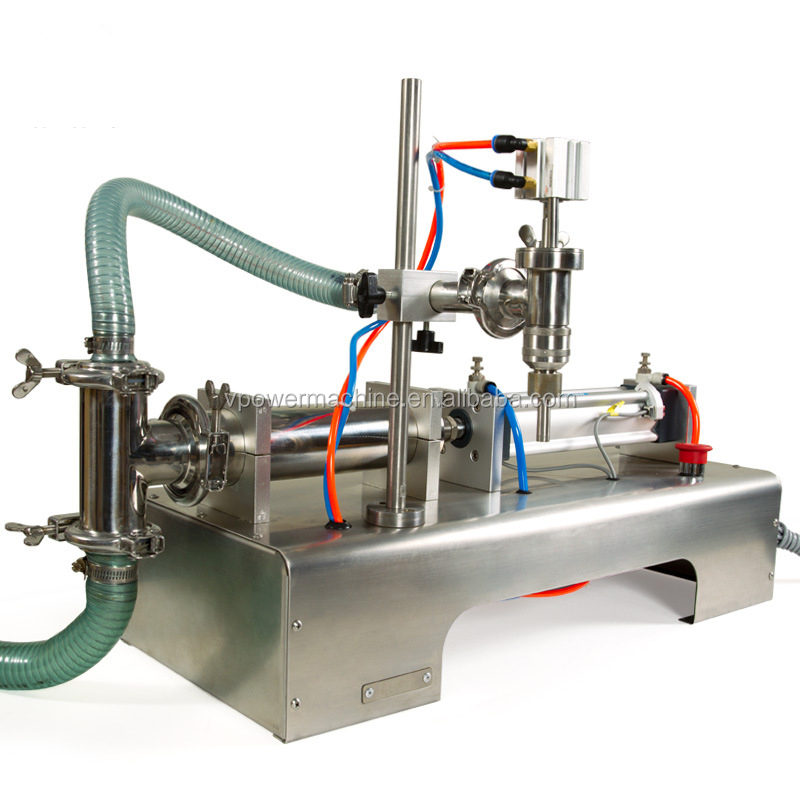

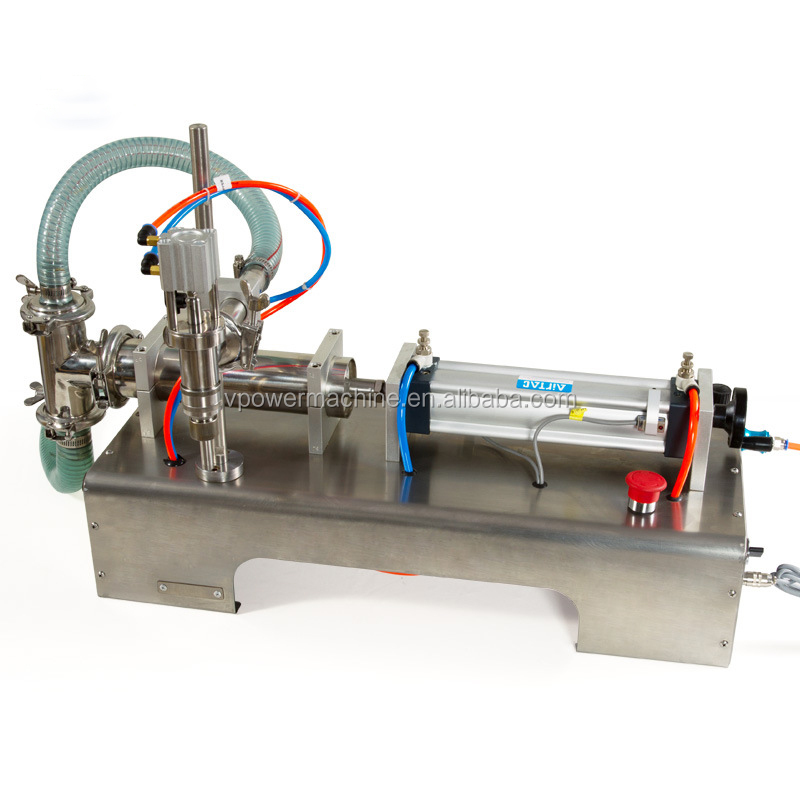

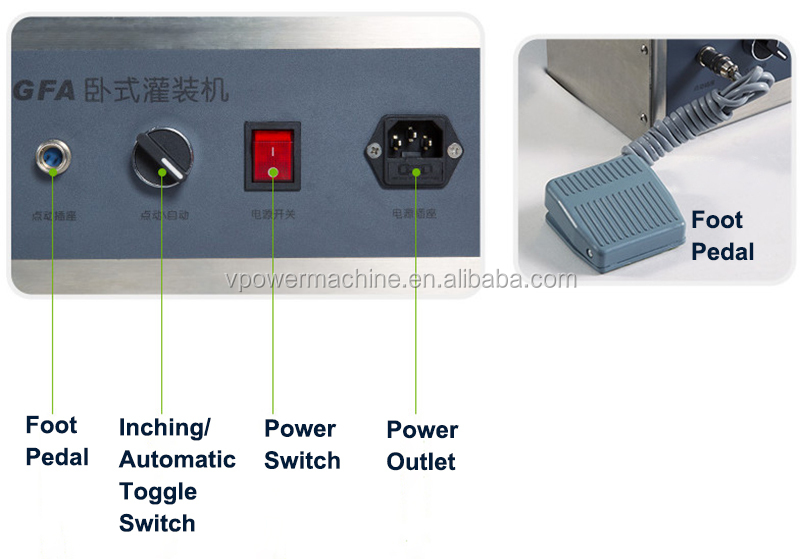

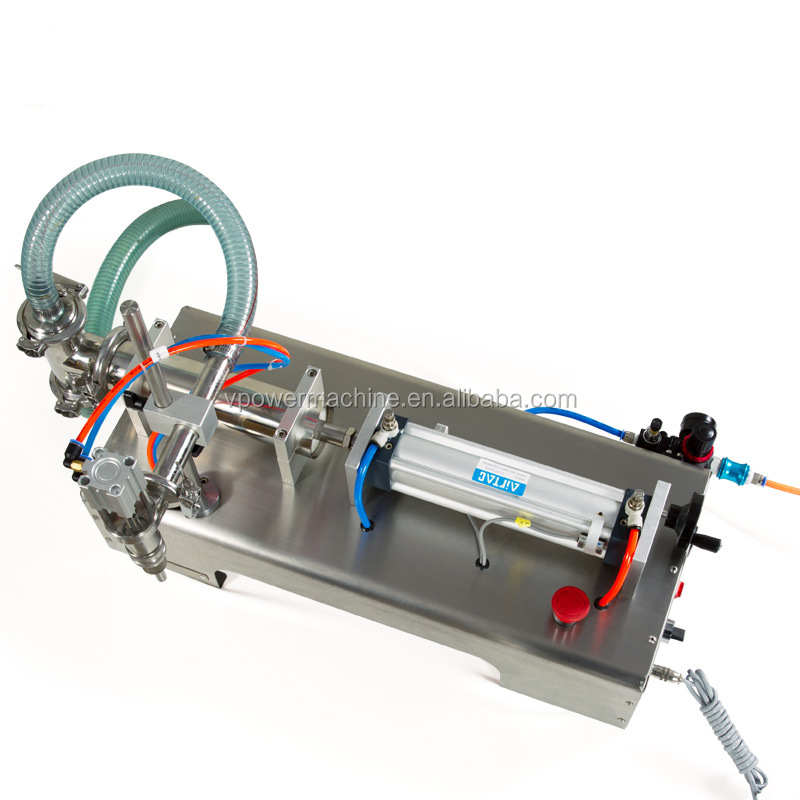

Detailed Images:

G1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,JuiceG1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,JuiceG1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,JuiceG1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,JuiceG1WY Automatic One Head Pneumatic Horizontal Type Liquid Filling Machine For Drink,Essential Oil,Perfume,Mineral Water,Juice
