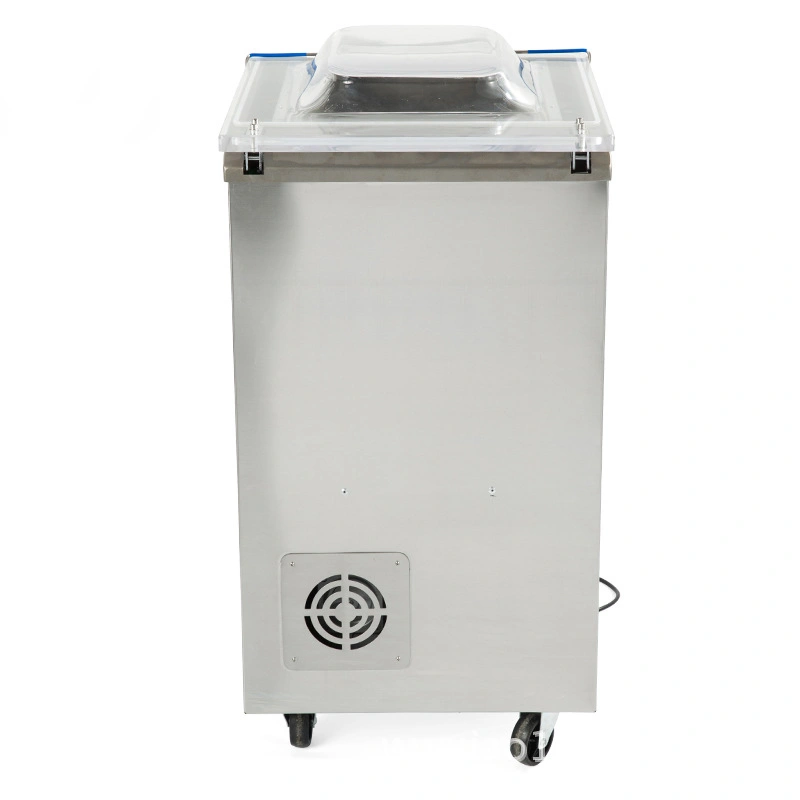

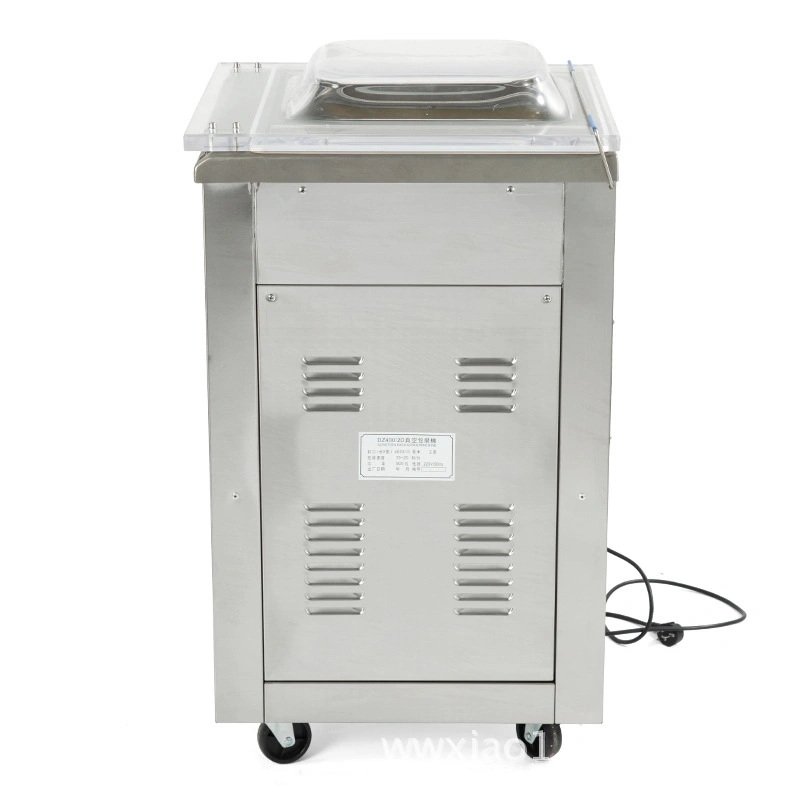

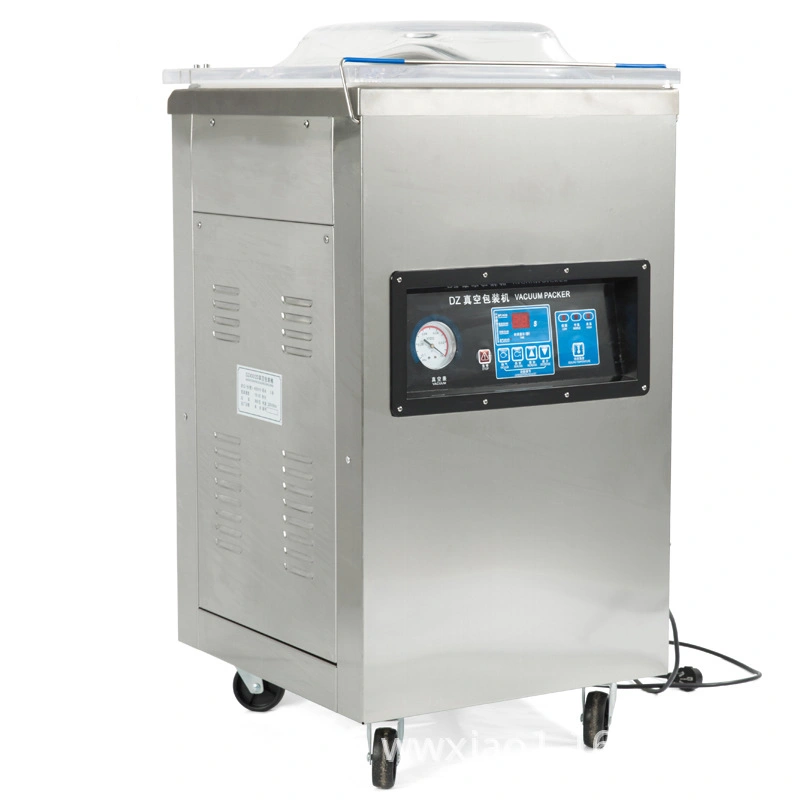

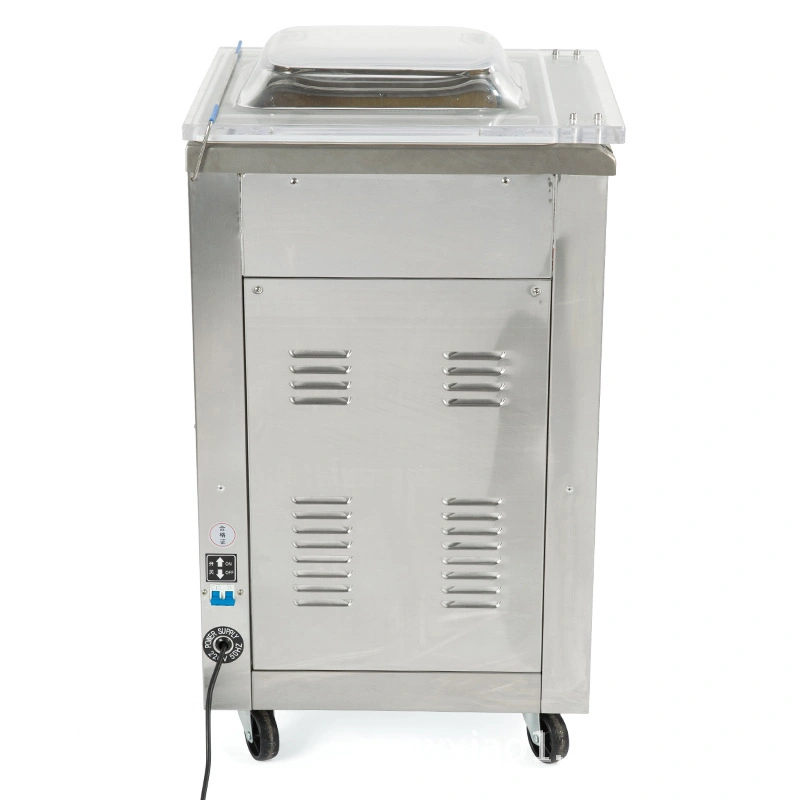

Guangzhou Factory DZ400 Deepened single chamber vacuum Sealer packaging machine For Fruit,Vegetable,Food,Tea,Rice,Meat

Production Information:

The vacuum packing machine is mainly used for oxide-free vacuum packing (with compound film) of foodstuffs, produce famous and rare medical materials native and special products, marine products after they are processed. This package is set with the function of combining vacuum, sealing, printing in one process and, for different packing materials and requirements, with the adjustable devices for the vacuum, hot-sealing temperature and time so as for the users to get optimum selection and adjustment for an optimum effect of packing. The printing device with a convenient letter-change and clear printing is available per the desire of the users, with which, users may print on the sealing at the same time for sealing the valid period, date of ex-factory, code of ex-factory etc. To meet with the provision of the national food label law. The package features advanced design, full function, stable and reliable performance, good sealing strength, strong packing capacity, convenient operation and service, high economic benefit etc. And is the ideal machinery for the vacuum package.

Parameters:
Vacuum chamber size:                   420*310*170 mm
Max vacuum chamber Pressure:    200 PA
Power source:                                 220V and 110v are optional

Power:                                             900 W

Sealing Length:                              400mm
Sealing Width:                                10mm
Vacuum Pump Rate:                       20m3/h

Sealing speed:                                15-25 pieces/min
Dimension:                                      570*510*900 mm

Weight:                                            80 kg

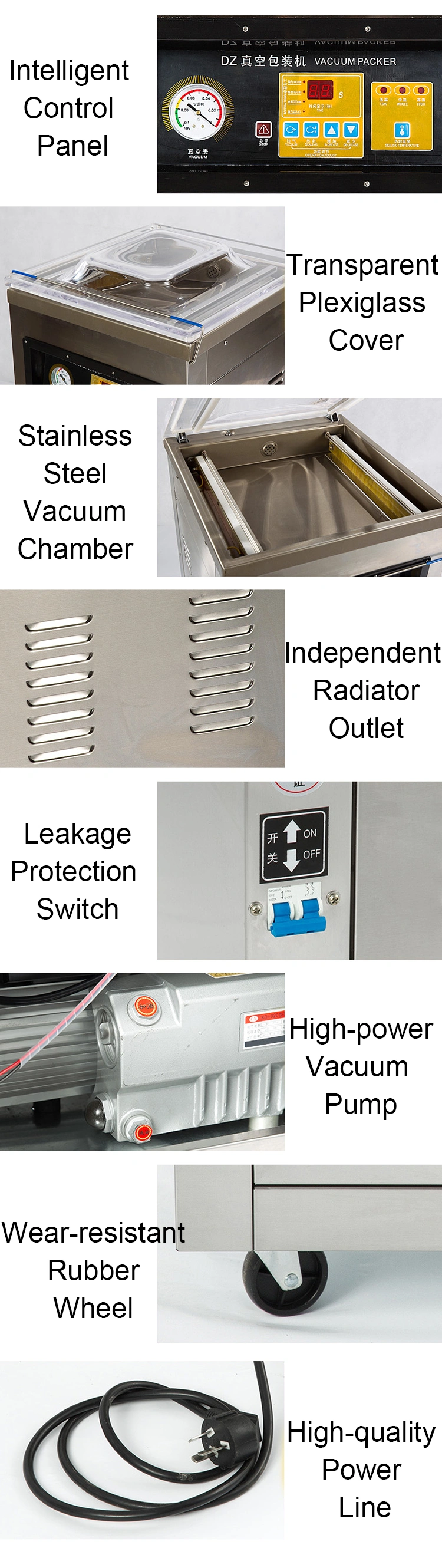

Features:
1. This vacuum packing machine has passed CE and ISO9001:2000 approved.

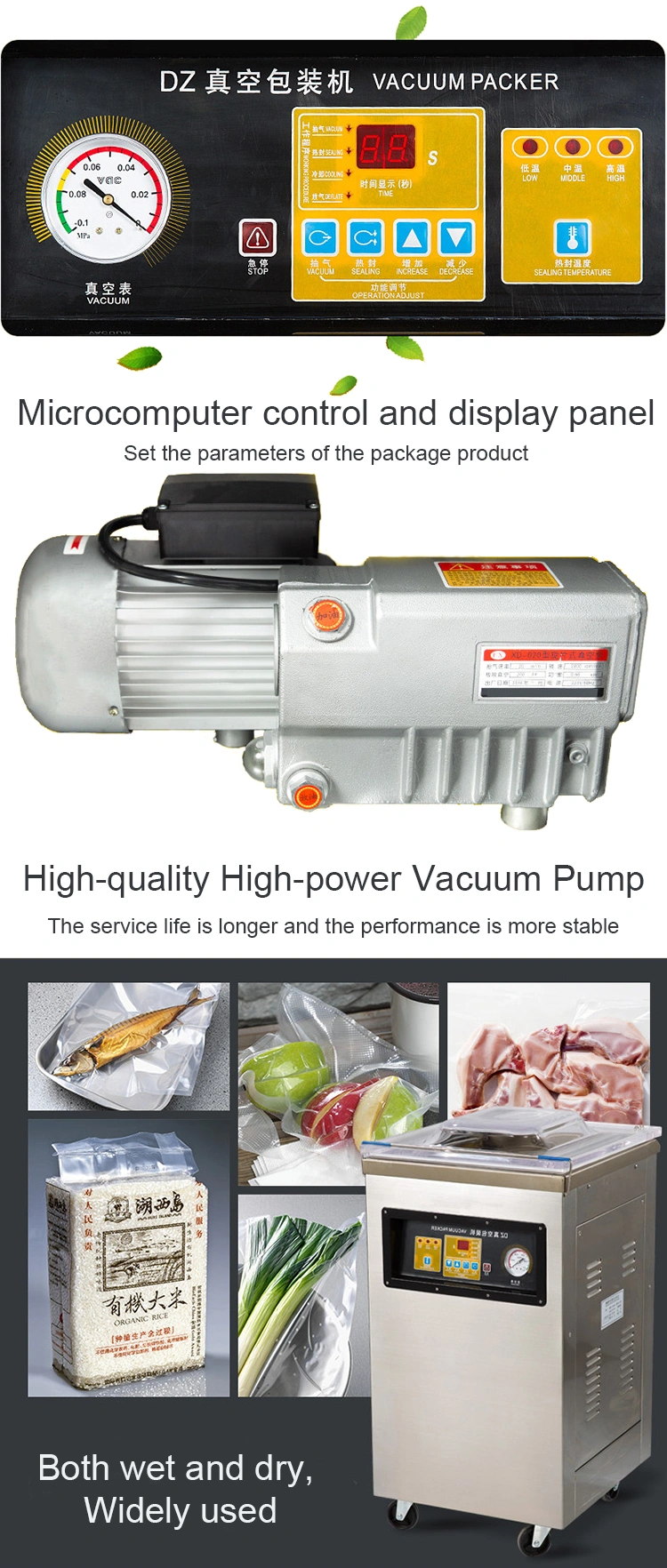

2.Control System: Computer Control Panel, there are many control manner for customers selecting

3.Vacuum Pump: strict quality examination system ensured the heat of vacuum packaging machine run smoothly, (Different brand and exhaust ports of vacuum pump could be configured according to customers specifications)

4.Machine Lid Gemel: Special designed gemel device of machine lid which could reduce the working intensity dramatically in daily working life

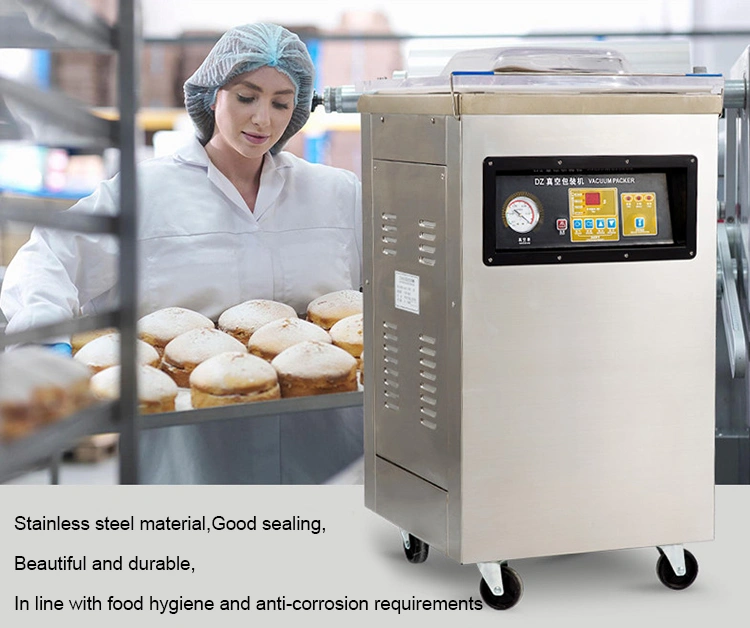

5.Main structure’s material: Main structure’s material of vacuum packaging machine is 304 stainless steel, which ensures the beautiful appearance and antisepticises under serious cauterization circumstance

6."V"type lid gasket: The"V"type lid gasket is made from the high-density material which prolongs the using life and wearable in the daily usage, it’s also reduced the replacement time and production cost

7.Heavy moving wheel (with brake): The heavy moving wheel with high bearing capability, which makes customer moving easily

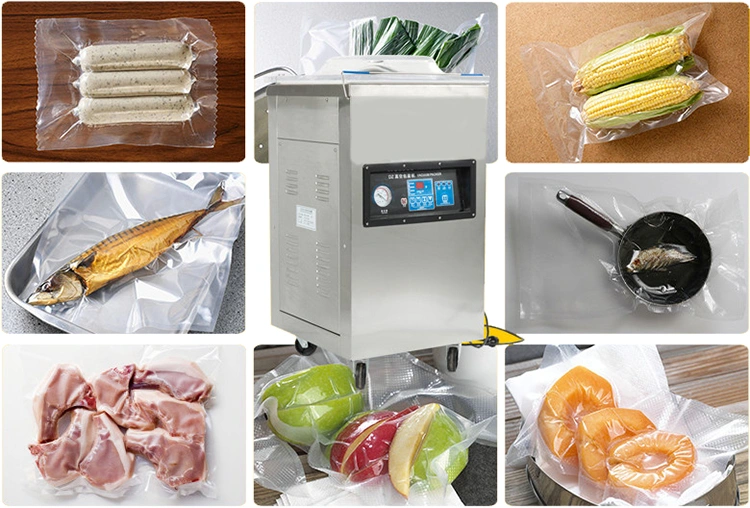

What kind of products can I vacuum seal?
Vacuum sealers can be used to vacuum package most kinds of foods as well as household items. However, there are certain guidelines that should be followed to maximize the capabilities of your vacuum sealer:

Vegetables should not be vacuum sealed fresh. It is best to blanch them (place in boiling water until they are hot, yet still crunchy), then submerge in ice water to stop the cooking process. This will allow the vegetables to retain their color and firmness. You may then continue with the vacuum sealing. You can also freeze the fresh vegetables and then continue the vacuum sealing process. If this is not followed, they will emit a gas after they have been vacuum sealed that will interfere with the vacuum seal of the bag.

Any food, such as meat or fish, that is very moist, is the best vacuum sealed after it has been frozen. The excess moisture in the food will interfere with the sealing phase. Likewise, more delicate foods, such as bread or fruit, which are likely to be compressed under the pressure of vacuum sealing should also be frozen first to help the product hold its shape.

Package: Special Export Plywood Case Packing

Warranty: One year from the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by the un-properly operation, then the Seller would offer the new parts for free.
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
Documents: We can provide Telex release bill of loading or Original Bill of loading, Certificate of the original. Other documents can be provided according to your requirement.

 About after sell service of our machinery
Usually, machine guarantee time is about 1 year. Within guarantee time. Machine breaking caused by the machine itself design defect, we are responsible for it. We can provide free charge breaking part. If machine breaking caused by the human factor, the user need take responsibility for it, we will provide technical support.

About goods shipping of our machinery
We have long time working shipping forwarder. We can do our best to send the machine to your port safe and sound. If you need, we can help you do customs clearance.

About payment term of our machinery
Currently, in order to protect you and our rights. Both us in safe, hope we can do business in a safe way.
L/C(>20000USD),Western Union,T/T(Bank transfer),Paypal,Alibaba
which one are you want, we can discuss it.

About online Service of our machinery
24 hours online to solve any problem. Your email will be replied within 12 hours. Your satisfaction is our pursuit. Sincerely hope our cooperation.

Training:
1. We offer machines training system, the customer can choose training in our factory or in customer workshop. The normal training days are 3-5 days.
2. We offer operation manual to the customer.
3. We offer training video and machine operation video to the customer.
4. We offer remote control service if the customer does not know how to operate and use the machine.

Installation:
We will dispatch engineers to carry out installation and debug of the equipment in buyer's place if requested. The cost for International Double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work.

Warranty:
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials. The machine will be guaranteed in one year, in the guaranteed year, any spare parts are broken due to supplier’s quality issue, the spare parts will be supplied free for the customer, customer needs to pay the freight cost if the parcel weight more than 500gram.

Business Philosophy
Quality is our life
Good cooperation starts from the trust

Scope of Business
Our company is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are soap machine, packing machine, labeling machine, capping machine, sealing machine, wrapping machine, vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel mixing tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.

Q: Are you factory or trading company?
A: We are factory focus on designing, manufacturing, assembling, installing and debugging various types of cosmetic machinery such as filling machines, capping machines, labeling machines, soap machines, sealing machines, packing machine and printing machines etc since 2004.

Q: Can you send a video showing how your machine works?
A: Certainly, we have made all our machine's video.

Q: Do you make a test before shipment?
A: We always test machine fully and make sure it works smoothly before shipment.

Q: What is the term of payment and trade terms?
A: We accept T/T, Western Union, MoneyGram, Alibaba Trade Assurance payments.
Trade Term : EXW,FOB,CIF,CNF.

Q: What’s the MOQ and warranty?
A: There is no MOQ, welcome to order, we promise 12-month warranty.

Q: What kind of package for shipping?
A: Use the basic stretch film wrap around the whole machine, and packed with the exported wooden case, also can be according to your requirements.
