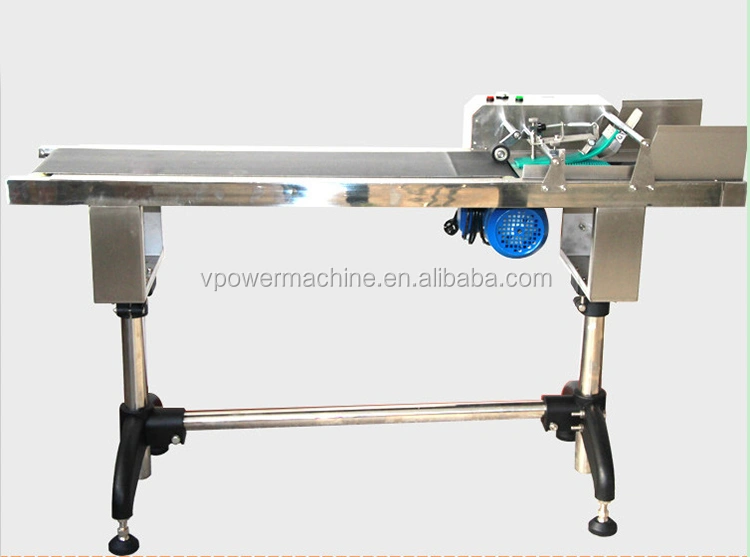

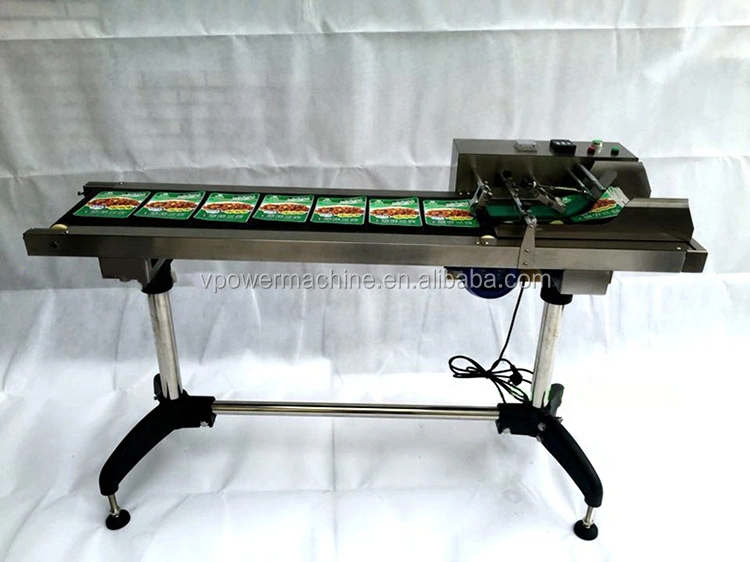

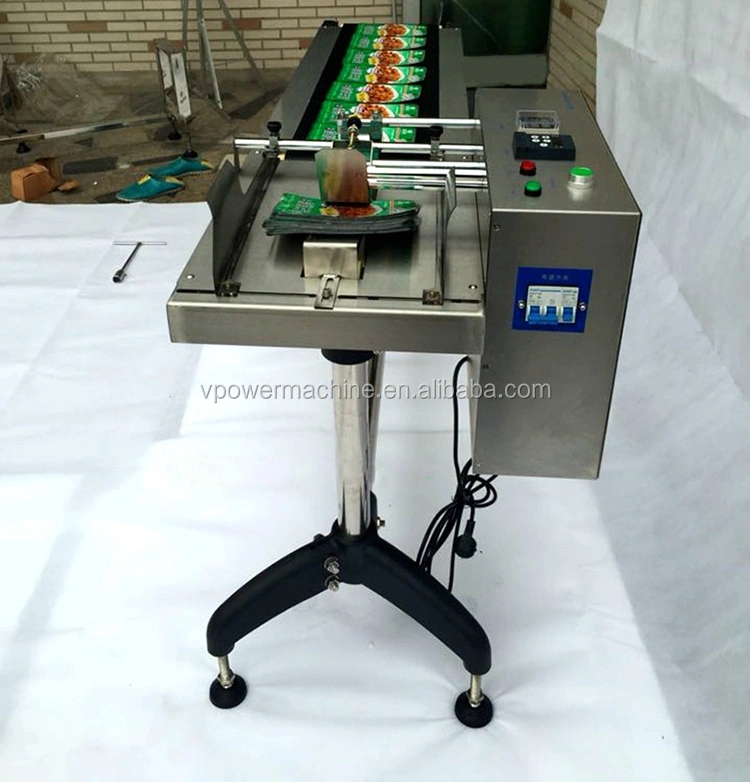

High quality high speed pagination conveyor machine Paging machine, page separation machine for inkjet printer

• Type:Inkjet Printer
• Place of Origin:CN;GUA
• Gross Power:0.18 kw
• Brand Name:Yuming
• Condition:New
• Usage:Bill Printer
• Usage:Card Printer
• Usage:Cloths Printer
• Usage:Label Printer
• Usage:Paper Printer
• Usage:Tube Printer
• After-sales Service Provided:Engineers available to service machinery overseas
• Voltage:110V/220V
• Certification:CE Certification
• Color & Page:Single color
• Dimensions(L*W*H):1440*480*800 mm
• Automatic Grade:Automatic
• Weight:55 kg
• Model Number:DFYJ300
• Plate Type:inkjet printing
• Product name:Automatic paging machine
• Name:pagination machine
• Object length:40-320 mm
• Object width:30-280 mm
• Object thickness:0.02-5 mm
• Speed:120-300 pieces/min
• Usage: Widely Used
• Material:stainless steel
• Function:Package bag or card is automatical seprated
• Warranty:One Year

High quality high speed pagination conveyor machine Paging machine, page separation machine for inkjet printer

Product Parameters:
Working mode:                                     Friction-style or Inversion wheel
Item length:                                          40-320 mm
Item Width:                                           60-280 mm
Item Thickness:                                    0.02-5 mm
Voltage:                                                220 V 50/60HZ
Power:                                                  180 W
Speed Regulation:                                Frequency Conversion
Dimension:                                            1450 * 560 * 865mm
Weight:                                                  55 kg


Working principle and use:

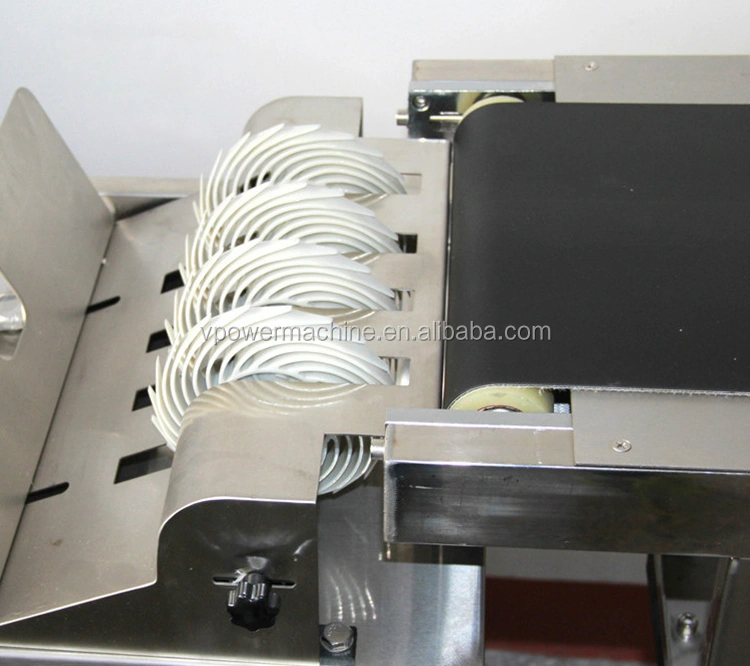

High-speed automatic paging machine (friction/reverse wheel type) for the stack of bags or cards automatically separated into a single conveyor belt to facilitate the inkjet printer or laser machine for printing, spray production date, batch number, Anti-counterfeit labels, patterns and so on. Thereby reducing the cumbersome manual paging, give full play Pen Maji, laser machine high-speed printing of the advantages of improving the printing efficiency.

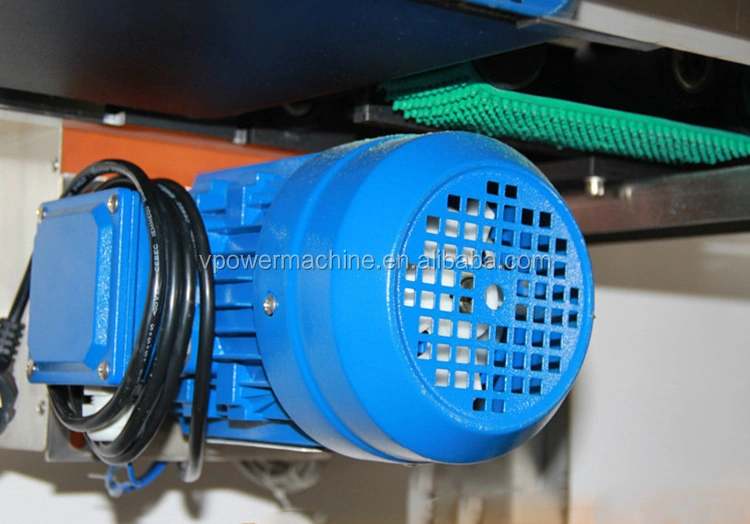

The machine is made of stainless steel, imported high-precision inverter with Shanghai motor, with high stability, and equipped with intelligent counting automatic shutdown function, easy production management, widely used in pharmaceuticals, cosmetics, food and other industries spray Code and jet printing.

Features:

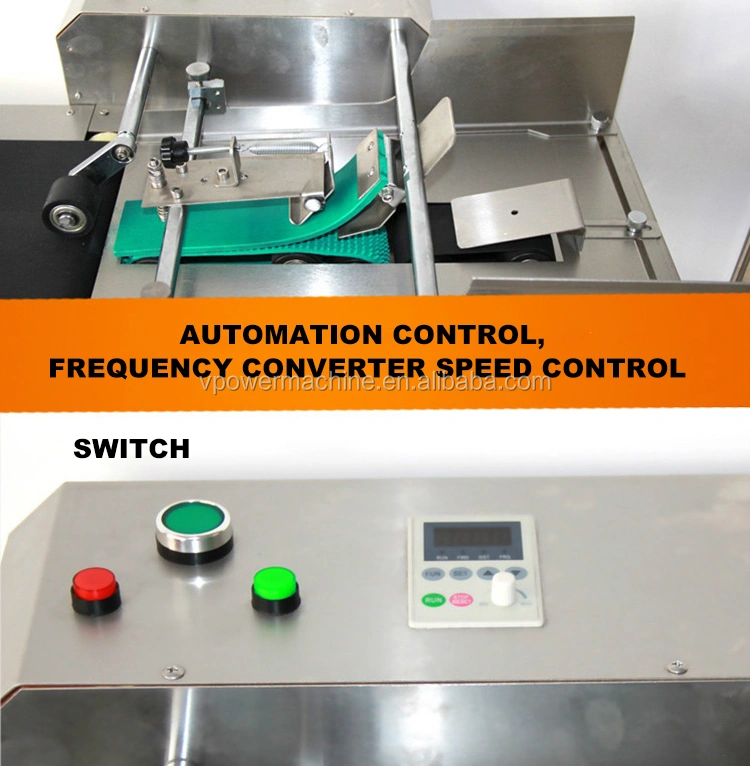

A. Paging high speed: imported high-precision variable frequency stepping speed, high-speed automatic paging 10-500 / min, can greatly improve production efficiency.

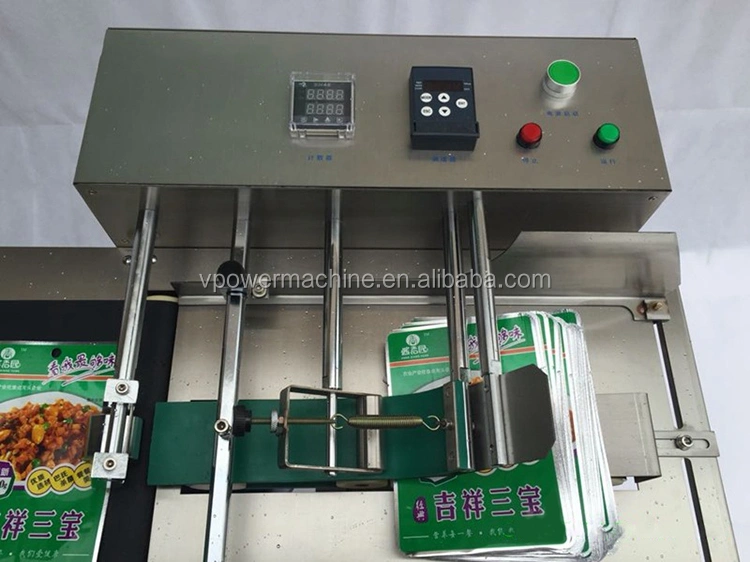

B. Positioning high precision: you can customize the automatic count, but also automatically set the number of pages automatically shut down, set the range 1-9999 (need to the inkjet printer, laser machine signal sharing), can reduce the rework rate.
C. Reasonable structure design, easy to replace the wearing parts quickly, can reduce maintenance costs.
D. Optional accessories: automatic feeding device, paging machine alone count stop signal source.
